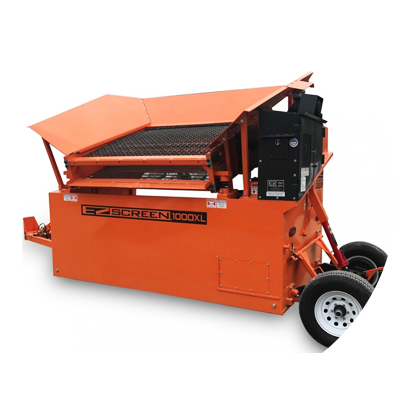

EZ-Screen 1000XL

Topsoil, gravel, aggregate, wood chips, street sweepings — bring them on!  The 1000XL is an everything-in-one portable screening plant, designed to handle whatever kind of screening work that needs to be done.

The simpler a machine is made, the more rugged and dependably it’ll work.  The 1000XL’s design, craftsmanship and rigorous field-testing prove this philosophy.  Add in low maintenance costs and ease of operation, and you’ve got your answer.

A few simple strokes of the hand-operated jack and the axle assembly lifts the 1000XL solidly into the transport position, ready for travel.  Just hitch it up to a 1-ton pickup and tow it to the next site.  Portability adds to versatility and productivity.

  • EZ one-person operation
  • Frame is constructed of structural, tube steel which reduces vibration, decreasing susceptibility to cracks and structural failure that is common with C-channel construction found on inexpensive screeners
  • All EZ-Screen surfaces are sandblasted, then treated with a baked-on powder coat finish
  • Loading bucket size range is up to an 8’ (2.44m) wide bucket. Matched to work with ½ to 1 ¾ yard loaders. Inside access for bucket 9’4” (2.84m)
  • Feed height at hopper 8’ 3” (2.52m)
  • Double deck 6’ x 5’ Screen Box with end tensioned screens. Hundreds of screen combinations available.
  • KOHLER™ KD-440 single cylinder air-cooled diesel engine, 10-HP with low and high temperature shut down, hour meter and electric start is standard
  • Fully enclosed, lockable engine compartment and starter panel
  • EXIDE™ “AGM” battery for long life in a vibratory environment
  • Patented non-hydraulic EZ-Kinetic Screen Drive
  • Dual-stage air filter system with pre-cleaner
  • Tow hitch has safety chains, 7,000 lb. (3175.15kg) capacity jack, break-away controller and battery and can be equipped with either 3” (7.62cm) lunette ring with 2-5/16” (5.87cm) ball hitch option available
  • Sealed wiring harness with lights for legal towing
  • 6,000 lb. (2721.55kg) capacity axle on rear with EZ Screen exclusive hand activated rear pivoting assembly with electric brakes
  • 225/75R15 “E” range 8 ply trailer tires plus detachable mud flaps
  • High-speed pre-greased hub set
  • Overall length: 13’ 3-3/4” with tongue folded
  • Overall width: 5’ 8” (1.72m)
  • Overall height: 8’ 3” (2.52m)
  • Weight at tongue: 1,760 lb. (798.32kg)
  • Overall weight: 5,462 lb. (2477.52kg)

Daily $500.00
Weekly $1,750.00
Monthly $5,250

Rental Request
