Exmark Commercial 21 Series

Make	Exmark
Model	Commercial 21 Series
Machine Type	Mower
Engine	Exmark, Honda, Kawasaki
Engine Fuel	Electric, Gas
Operating Weight	112 lbs - 117 lbs
Width	22″

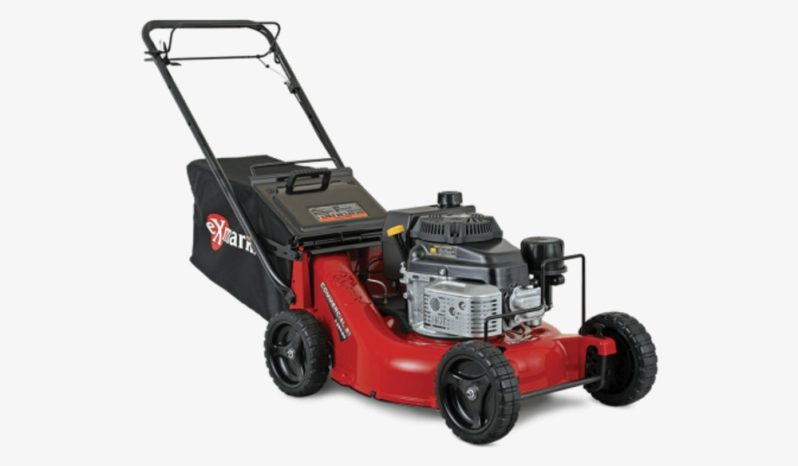

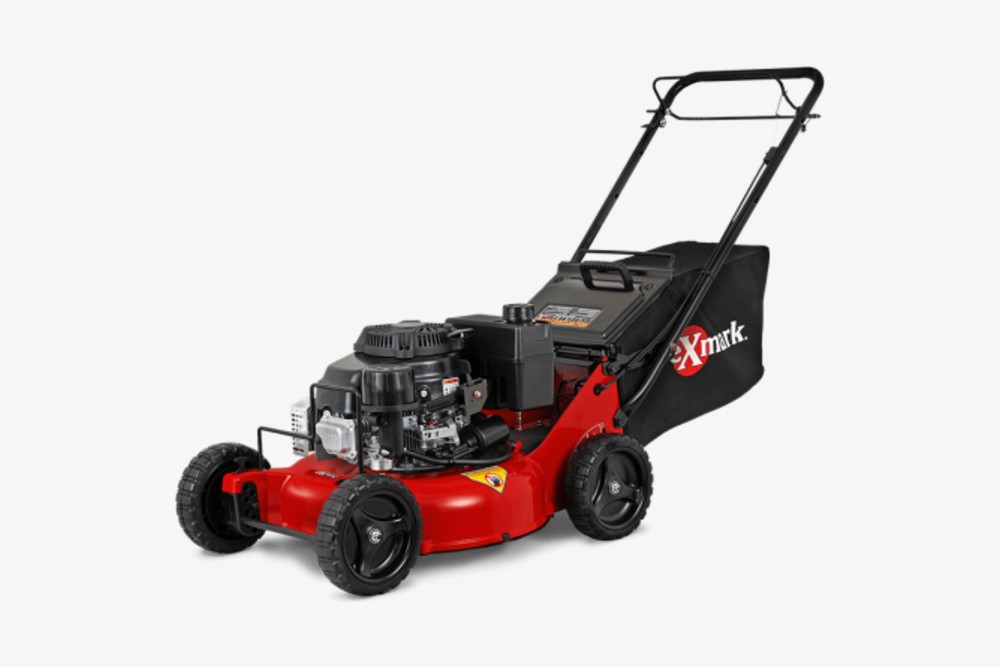

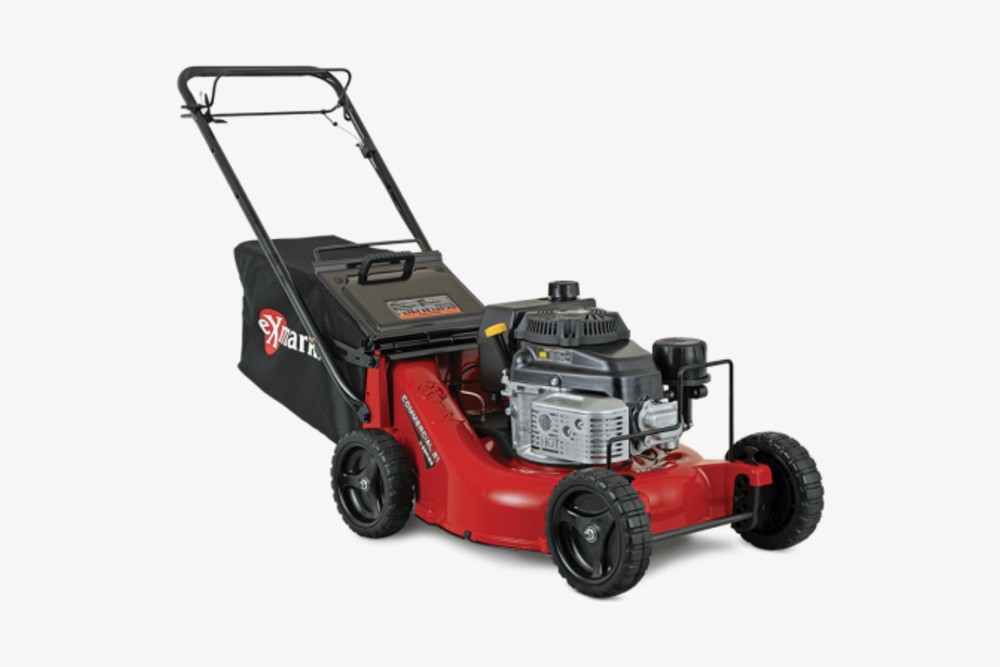

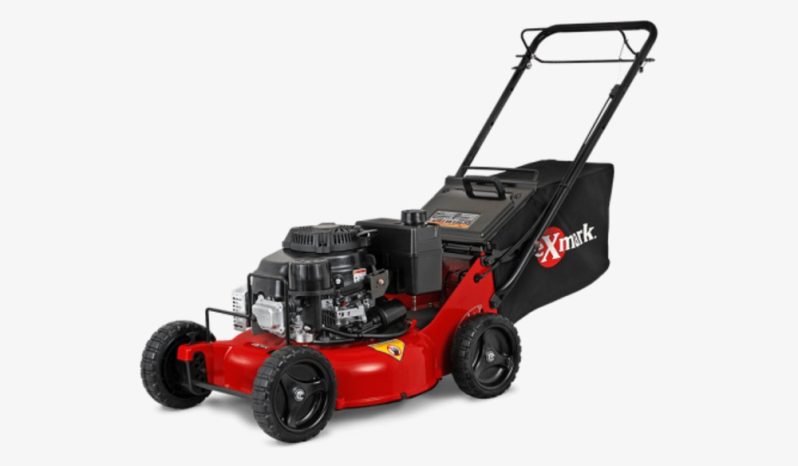

The Commercial 21 X-Series is a self-propelled walk-behind ready for any commercial job. Its one-gallon fuel tank means fewer stops to fill up, a powerful Kawasaki engine does the work, and the ground speed varies anywhere from 0 to 4.2 mph. For a wider walk-behind, see the Commercial 30.

Key Features:

Easy On/Off Bag: The large 2.5-bushel bag needs no levers or doors, and its top-fill design lets the operator see how full it is while mowing.
Exmark Signature Cut: A full 5″-deep cutting deck gives a consistently great cut, bagging or mulching.
Patented Front Height Adjustment: Simple and built to last, it does away with pivot-style adjusters. Single-point rear height adjustment changes the cutting height quickly.
Bag Capacity: 2.5 bushels
Wear Strips: Fitted for better durability.

Specifications:

Models: ECX180GKA21000 (Kawasaki), ECX180GKA210BC (Kawasaki, Blade Brake Clutch), ECX180CKA210BC (Kawasaki, Blade Brake Clutch, 1-gallon remote fuel tank, CARB compliant), ECX160GHN21000 (Honda)
Engine: Kawasaki FJ180V KAI, 179 cc, or Honda GXV160UH2, 163 cc
Fuel: gas, carbureted, 1-gallon tank
Starter: recoil
Transmission: General Transmissions gear, infinitely variable speeds
Drive: self-propelled, belt drive, rear-wheel gear-driven
Speed: 0 to 4.2 mph forward
Deck: 21″ fixed deck, 5″ deep, 1/4″-thick die-cast aluminum, rear-discharge bagger and mulch plug standard
Cutting height: 1.0″ to 4.5″ in 0.5″ increments

Blade: one 20.5″ blade, tip speed approx. 18,500 fpm
Bag: 2.5 bushels (20 gallons)
Tires: 9″ x 2.4″ semi-pneumatic, front and drive
Safety: zone start, or Blade Brake Clutch on the BBC models
Productivity: 0.71 acres per hour, for properties under 1 acre
Dimensions: 22″ wide, 63″ long, 38″ high
Curb weight: 117 lbs (Kawasaki), 112 lbs (Honda)
Warranty: 1-year limited, commercial and consumer

Exmark Commercial 21 walk-behind mowers have a name for getting the job done faster and better. Their commercial-grade 21″ decks give a quality of cut and years of worry-free service that have become the industry benchmark, and the patented front height adjustment system with single-point rear height adjust adds even more versatility.

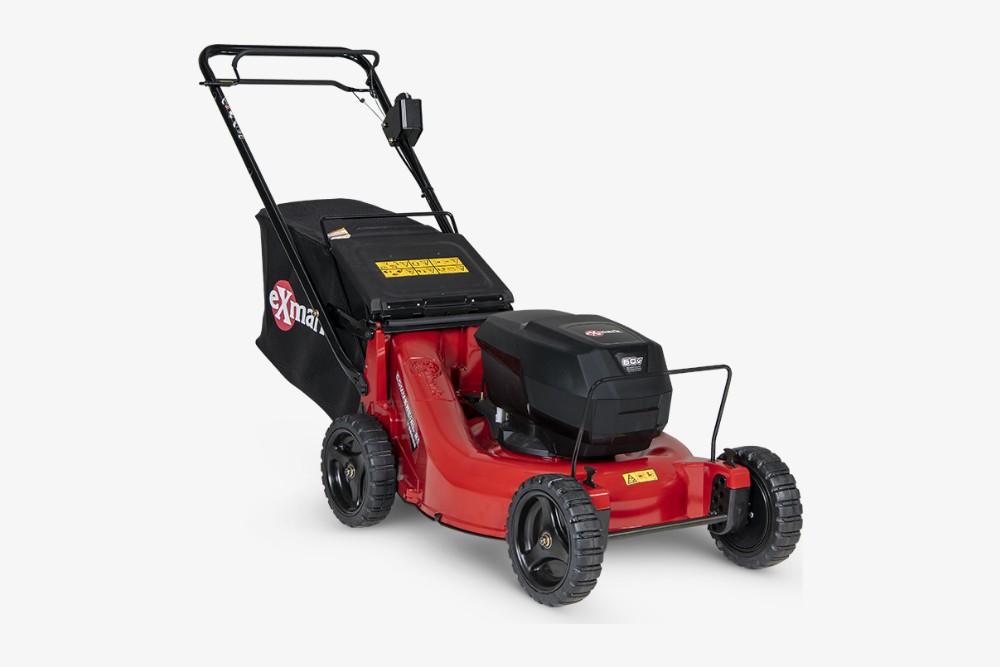

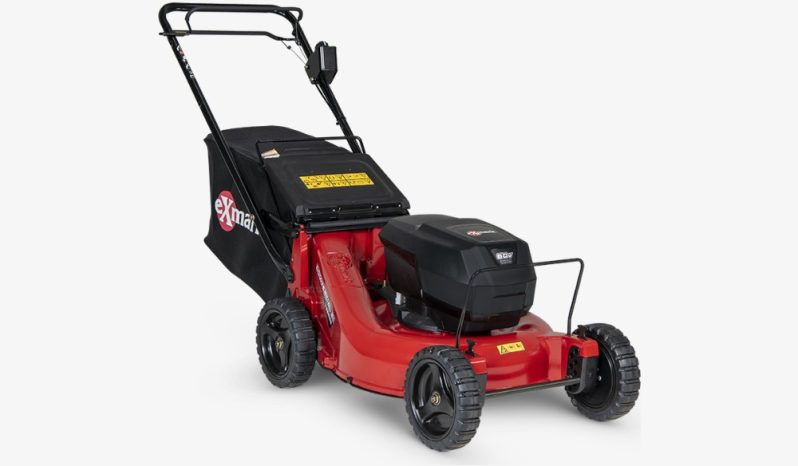

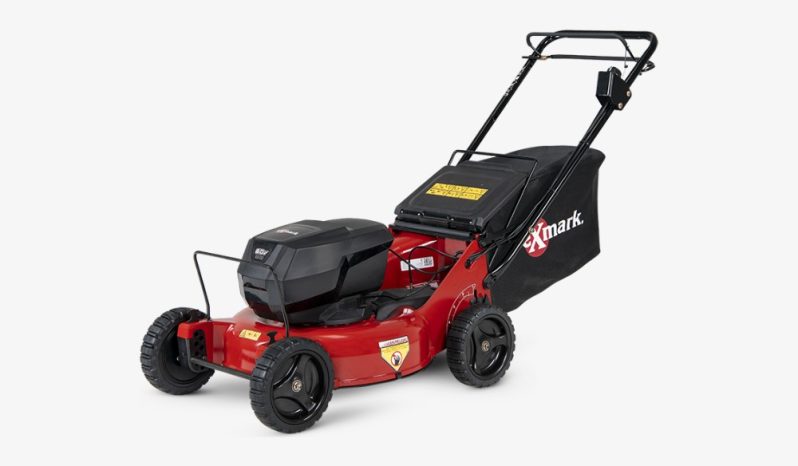

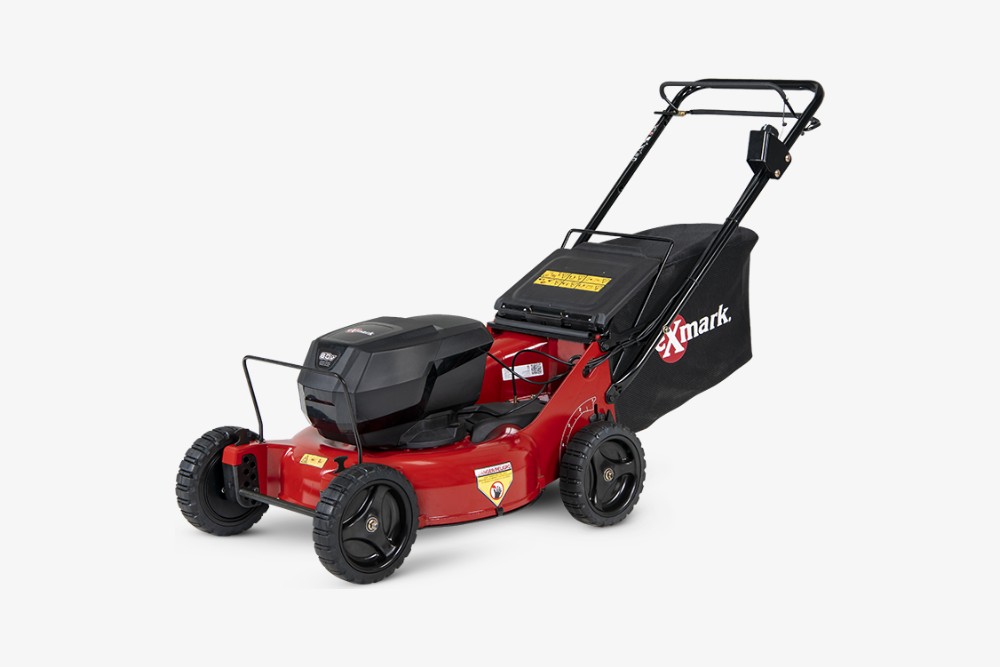

The Commercial 21 V-Series uses the same 5″-deep die-cast aluminum deck as the gas Commercial 21, which makes it the only electric walk-behind that cuts like an Exmark. It also keeps the same heavy-duty transmission, 2-bail control system and zone-start blade engagement, so it feels and lasts like an Exmark. The 60V rechargeable power system means no gas, no oil and virtually no maintenance. It is Exmark’s premier commercial electric walk-behind, built for jobs in areas with sound ordinances or zero engine exhaust emission mandates. For a larger electric mower, see the Vertex V-Series stand-on.

Key Features:

Built for Residential Areas: Zero emissions and lower noise let landscape pros mow in Zero Emission Areas and HOA quiet zones.
60V Professional Power System: Up to 40 minutes of runtime per charge. Two 60V, 7.5Ah batteries come standard, along with a 60V, 5.5A rapid charger that brings a dead battery to 90% in 75 minutes.
Easy Push-Button Starting: Choose battery-saving Auto mode or full-power Max mode to suit the cutting conditions.
Exmark Signature Cut: The 5″-deep cast alloy deck gives a consistently superior cut, bagging or mulching.
Patented Front Height Adjustment: Simple and built to last, it does away with pivot-style adjusters. Single-point rear height adjustment changes the cutting height quickly.
Same Build as the Gas Models: Same deck, wheels, height-of-cut system and transmission as Exmark’s gas walk-behinds.
In the Box: Two 60V, 7.5Ah batteries, high-speed charger, mulch kit and 2.5-bushel bag.

Specifications:

Model: ECV060B0121000
Motor: Exmark 2kW brushless motor, 2,800 rpm
Power: 60V Flex-Force, 5.5A charger and two 540Wh batteries standard, charge indicator on the battery
Transmission: General Transmissions gear, infinitely variable speeds
Drive: self-propelled, belt drive, rear-wheel gear-driven
Speed: 0 to 3.5 mph forward
Deck: 21″ fixed deck, 5″ deep, 1/4″-thick die-cast aluminum, rear-discharge bagger and mulch plug standard
Cutting height: 1.0″ to 4.5″ in 0.5″ increments

Blade: one 20.5″ blade, tip speed approx. 15,400 fpm
Bag: 2.5 bushels (20 gallons)
Tires: 9″ x 2.4″ semi-pneumatic, front and drive
Safety: zone start
Productivity: 0.40 acres per charge, for properties under 1 acre
Dimensions: 22″ wide, 63″ long, 38″ high
Curb weight: 115 lbs

Choosing the Right Model

Commercial 21 X-Series: Gas power from a Kawasaki FJ180V or Honda GXV160UH2 engine, a 1-gallon tank, 0 to 4.2 mph and 0.71 acres per hour. Blade Brake Clutch versions are available.
Commercial 21 V-Series: 60V battery power and an Exmark 2kW brushless motor, with no gas, no oil and virtually no maintenance. 0 to 3.5 mph and up to 40 minutes or 0.40 acres per charge. Made for areas with sound ordinances or zero-emission mandates.

Common Features Across All Models

21″ fixed deck, 5″ deep, 1/4″-thick die-cast aluminum
Rear-discharge bagger and mulch plug standard; the blade design makes it easy to switch from mulching to bagging
Easy on/off 2.5-bushel bag with top fill
Patented front-wheel height adjustment and single-point rear height adjustment
Cutting heights from 1.0″ to 4.5″ in 0.5″ increments
Single-speed gear transmission (General Transmissions) with infinitely variable ground speed
Simplified bail system
Self-propelled, rear-wheel gear drive
Zero grease points and less than half the parts of other walk-behinds in its class
9″ x 2.4″ semi-pneumatic tires
22″ wide, 63″ long, 38″ high
