RAYMO
A remote-controlled commercial slope mower, fully electric or plug-in hybrid, built for steep banks, solar farms and low-clearance spaces.
One machine, set up for the job
RAYMO builds one mower: the TORPEDO carrier. You choose the mower deck and the power cartridge for the work, and change either one whenever the job changes.
- 45°+Works on slopes of more than 45°
- 20 inOverall height, low enough to mow under solar panels, benches and branches
- 5Interchangeable mower decks, from fine turf to wildflower meadows
- 1 minTo swap between fully electric and plug-in hybrid power

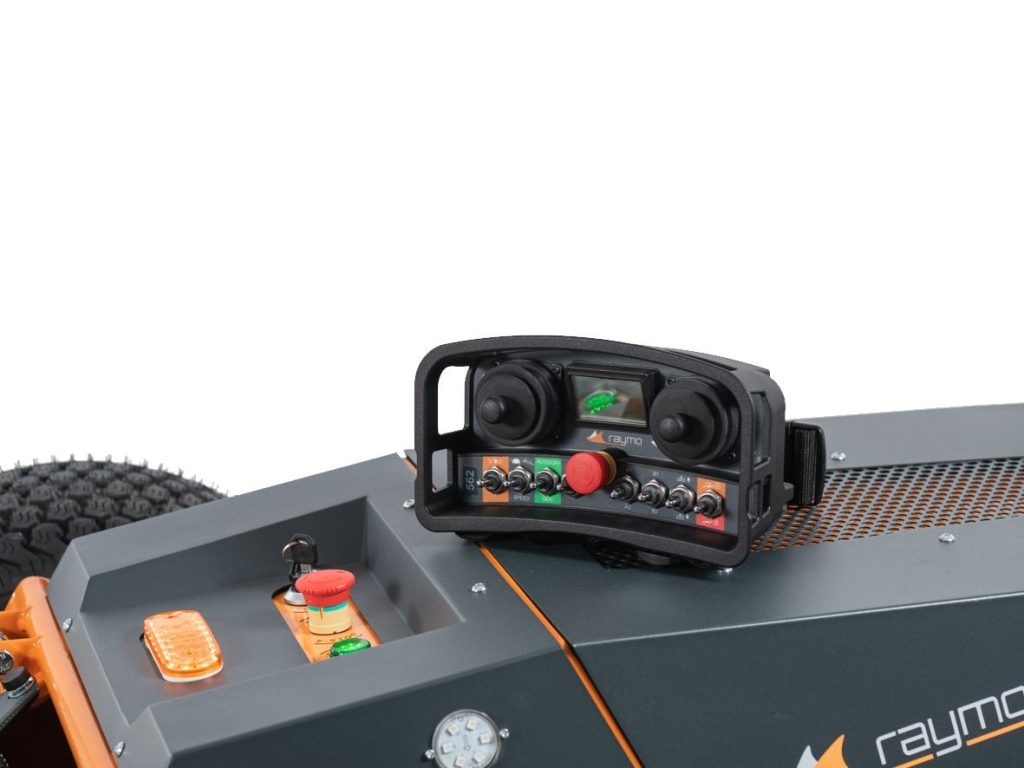

The TORPEDO carrier
The TORPEDO is the machine every RAYMO deck and power cartridge fits. It sits extremely low and pairs four-wheel drive with zero-turn steering: all-wheel traction on banks and uneven ground, zero-turn agility on the flat.
You drive it by radio remote from a safe distance, away from the noise, dust and vibration. With no operator, seat or rollover frame on board, the machine stays light and the battery lasts significantly longer.
- Power
- ElectricPlug-in hybrid
- Drive
- Four-wheel drive, zero-turn steering
- Control
- Radio remote
- Height
- 20 in
- Slopes
- More than 45°
- Wheels
- Turf tires, all-terrain tires, or FLEXI-SPIKE wheels for extreme slopes
- Work lights
- LED, for dusk and dawn (optional)
- Telemetry
- RAYLINK: live location, work logs, hours, setup and battery health, on a computer or phone
- Upkeep
- Sharpen the blades, clean and lubricate. No belts, hydraulics, engine oil or air filters.
Mower decks
Every deck fits every TORPEDO carrier and can be changed whenever the job calls for it. Choose one, or several for different kinds of work.

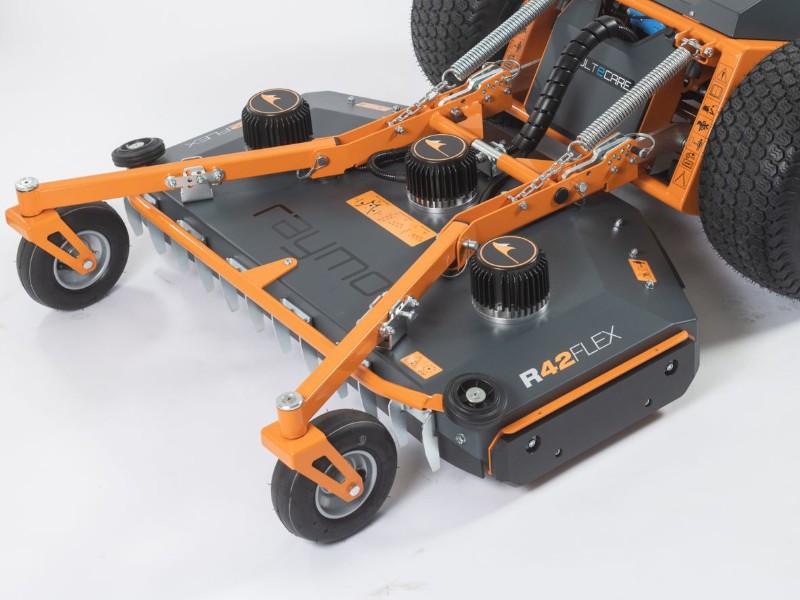

R42FLEX
All-round rotary deck
Fine mowing and general municipal work, including taller grass.
- Mulching or rear discharge
- Caster wheels for slopes; take them off on flat ground to work in tight spaces
- Non-scalping, and mows close along walls and curbs

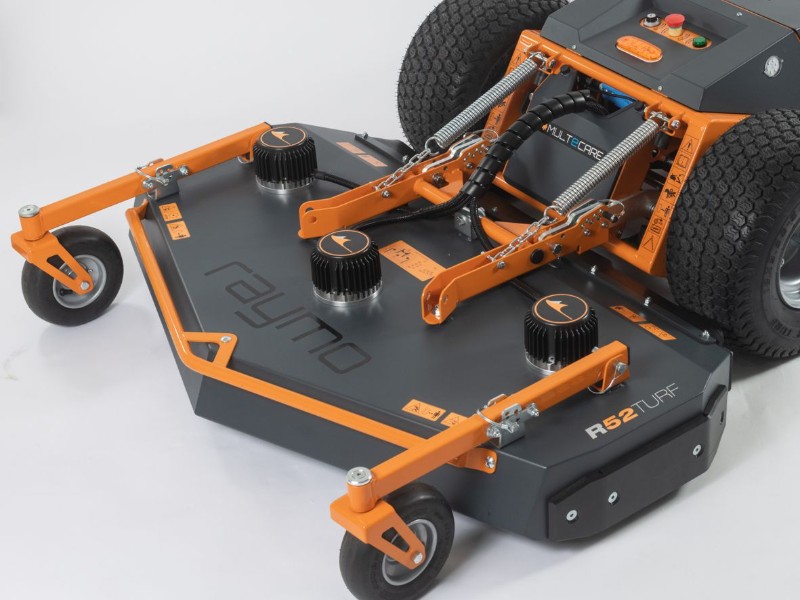

R52TURF
High-output turf deck
Large turf areas where quality of cut matters.
- 52 in cutting width, up to 2 acres an hour
- Mulching or rear discharge, with an optional deep-mulching kit
- Non-scalping on slopes; no belts, gearboxes or fluids

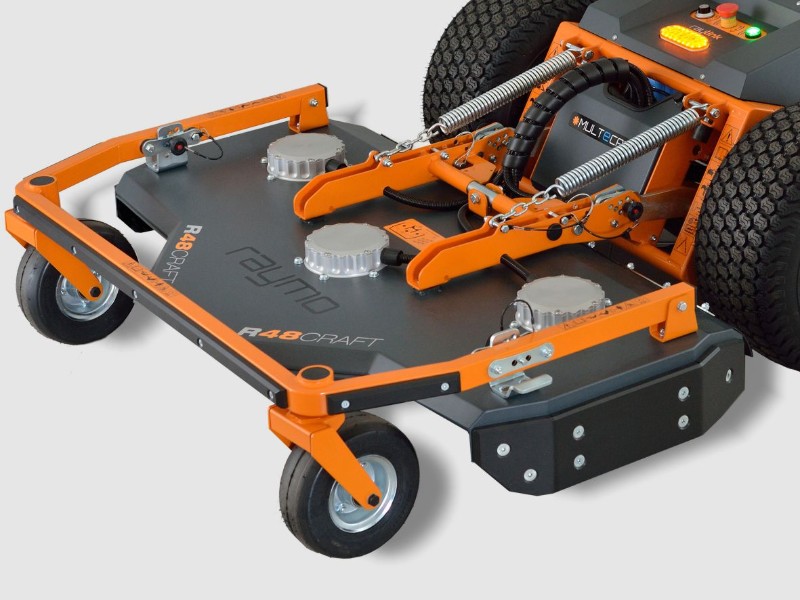

R48CRAFT
Rough-cut deck
Tall, thick grass, rough ground and solar farms.
- Twice the motor power and torque of the R42FLEX and R52TURF
- Swing blades with rear discharge
- Steel frame, nylon bumpers and suspended caster wheels

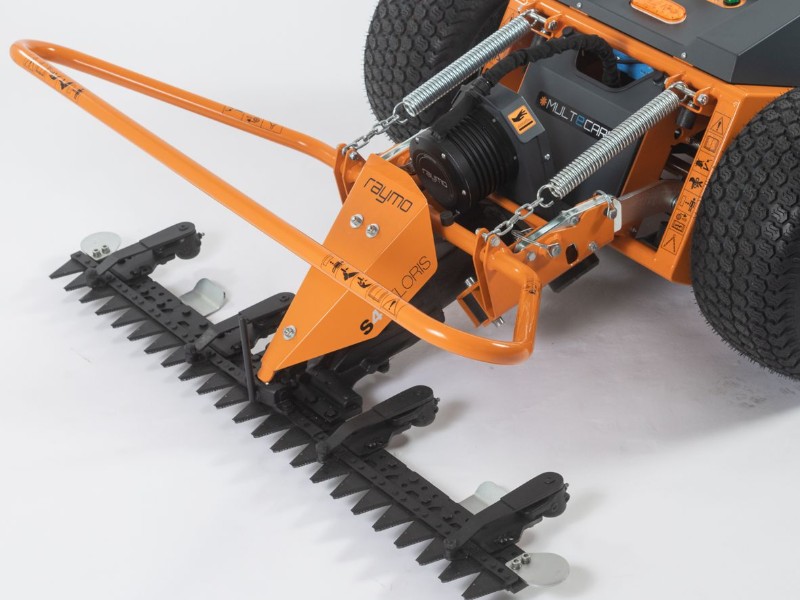

S46FLORIS
Sickle bar mower
Wildflower meadows and ecologically sensitive areas.
- The best protection for animals and insects
- Single action (tougher) or dual action (faster)
- Skids or rollers; replaceable BUSATIS blades

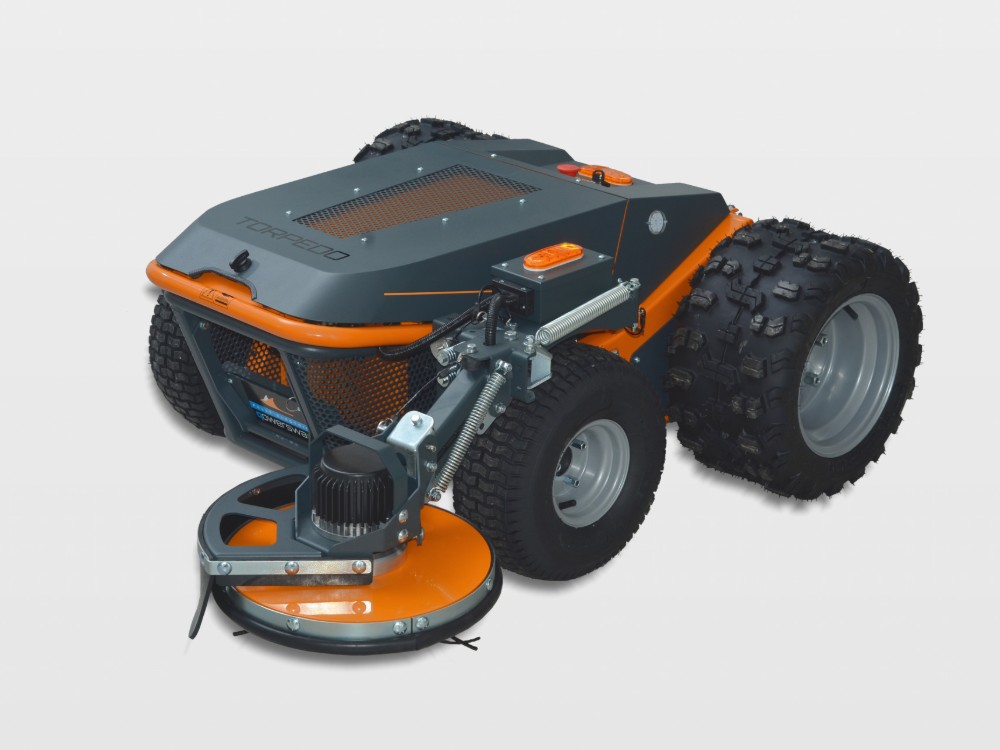

R14SFINX
Side-mounted post mower
Mounts on the side and works alongside a front deck, especially the R48CRAFT. It mows around posts, trees and guardrails in solar farms, orchards, vineyards, Christmas tree farms and tree nurseries, and along roads and highways.
- Floating head stays parallel to the ground and follows the terrain
- Heavy-duty strings for efficient, safe cutting
- Tilts to a service position, locks for transport, and comes off while its bracket stays on the machine

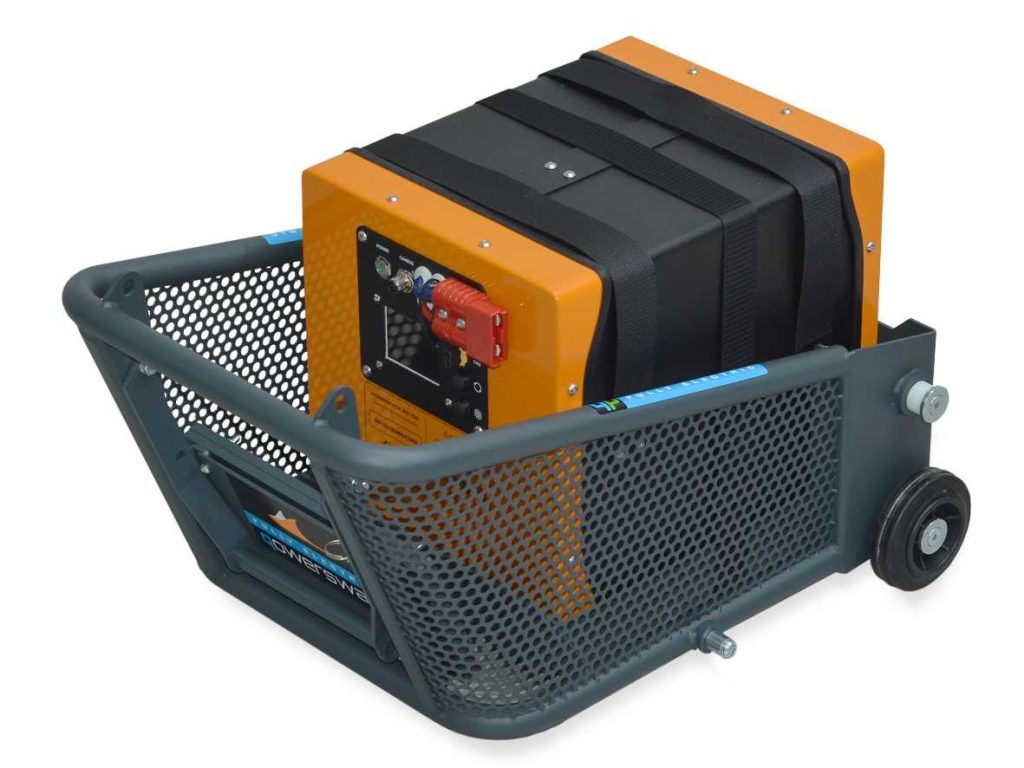

POWERSWAP power cartridges
RAYMO’s power comes in a cartridge that sits in a compartment on the machine. Run it on the fully electric battery cartridge, or fit the plug-in hybrid cartridge and choose battery or engine power. Swapping takes about a minute, and spare cartridges let you change during the day and get all the run time you need.
For example, mow on battery power in the early morning without the noise, then start the engine later in the day once noise rules no longer apply.
- Power
- ElectricPlug-in hybrid
- Fully electric
- Automotive-grade cells, zero emissions, no upkeep besides charging, built-in full-color battery display, fast charging available
- Plug-in hybrid
- Commercial Briggs & Stratton engine, generator and removable battery pack. Generator output adjusts to what the machine needs.
- Batteries
- Designed by RAYMO, with an extra warranty
- Chargers
- Three options, all on standard wall power with no extra electrical work. SMART chargers add charging programs.
| Charger | Charge time |
|---|---|
| BASIC 15A | Overnight |
| SMART 25A | 6 hours |
| SMART 50A Dual | 3 hours |
Where it works
With the right deck, RAYMO handles everything from fine turf to rough, overgrown ground.

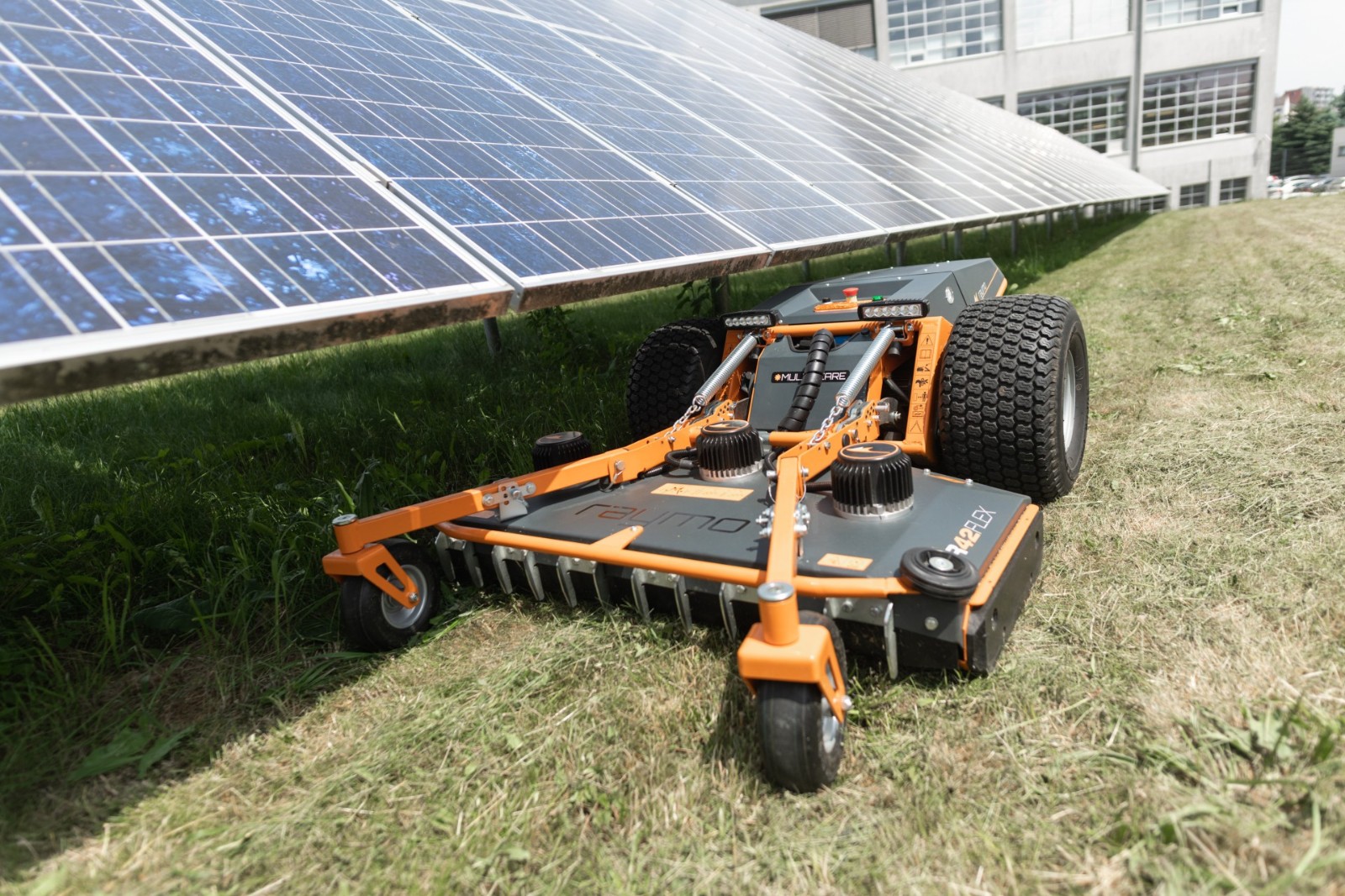

- Solar farms. Low enough to work under panel structures, with the power to cut tall, overgrown grass.

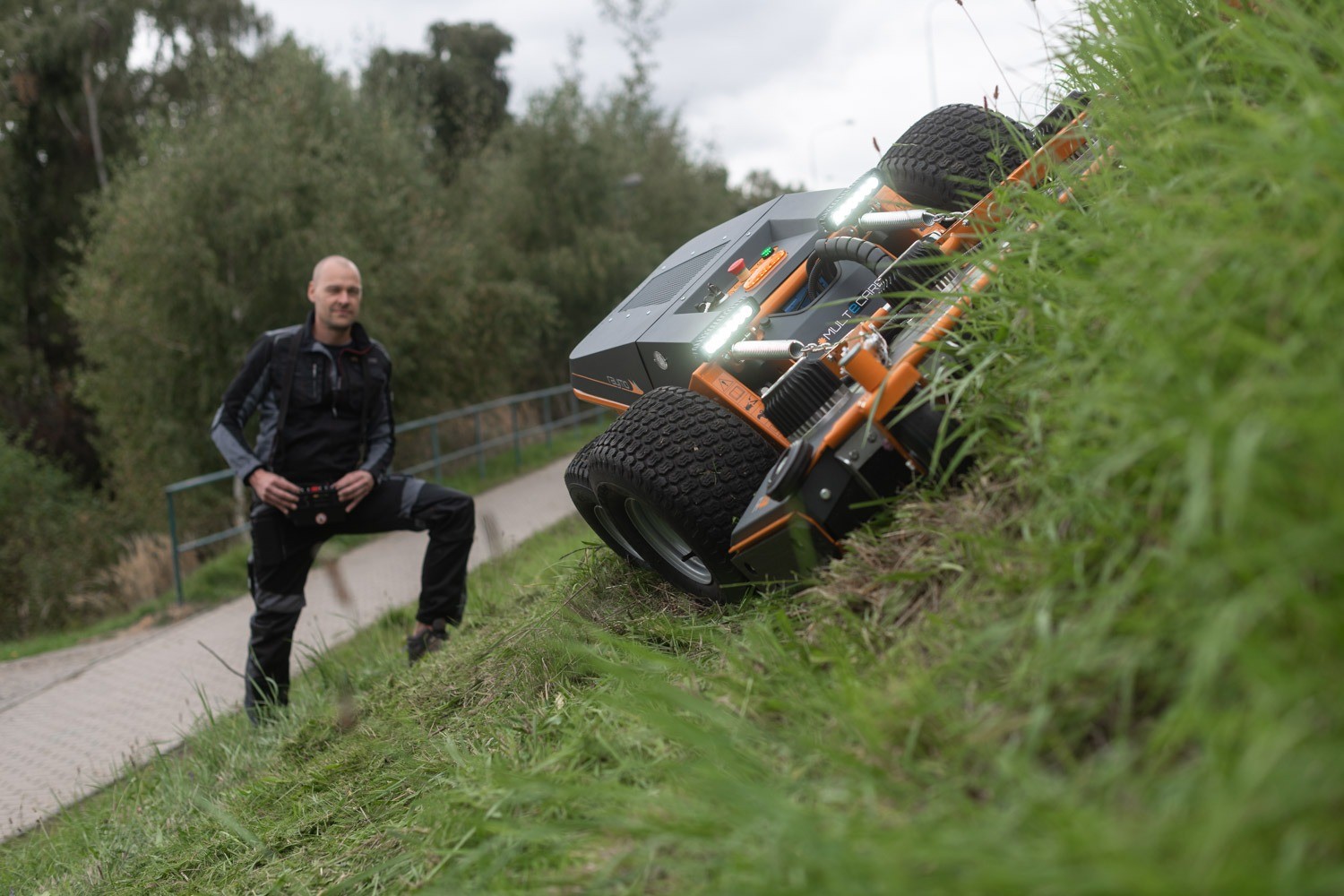

- Slopes and embankments. Four-wheel drive and a low center of gravity, with all-terrain tires or FLEXI-SPIKE wheels for grip.
- Parks and municipal grounds. Mulching, rear discharge or cut-and-drop, from manicured lawns to wildflower areas.
- Cemeteries. Compact, agile and quiet, with a fine cut.
- Sports fields, playgrounds and campuses. Fine-cut decks, silent and emission-free.
- Wildflower meadows and sensitive grounds. No emissions or fluid leaks, light weight and low soil pressure.
- Noise-regulated areas. Hard to hear from 100 ft away, so it can mow early, late, on weekends, and near schools and hospitals.
- Low-clearance spaces. Under benches, trampolines and low branches, with no hand trimming.
Find the right RAYMO setup
Call or send us a message and our team will help you choose the deck and power for your job.
