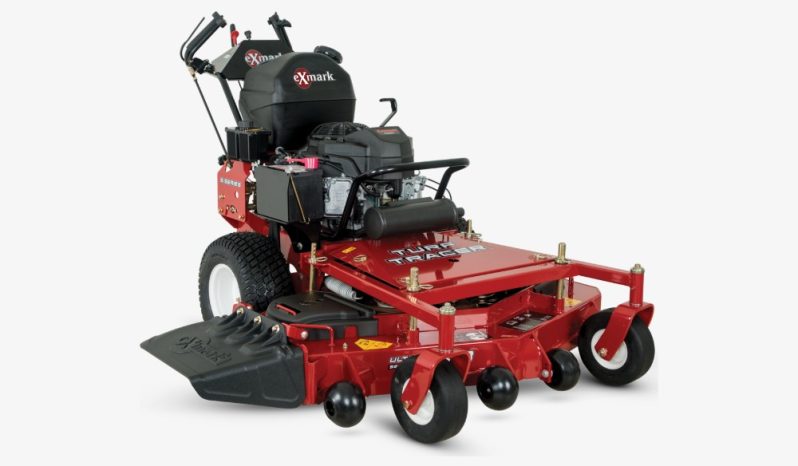

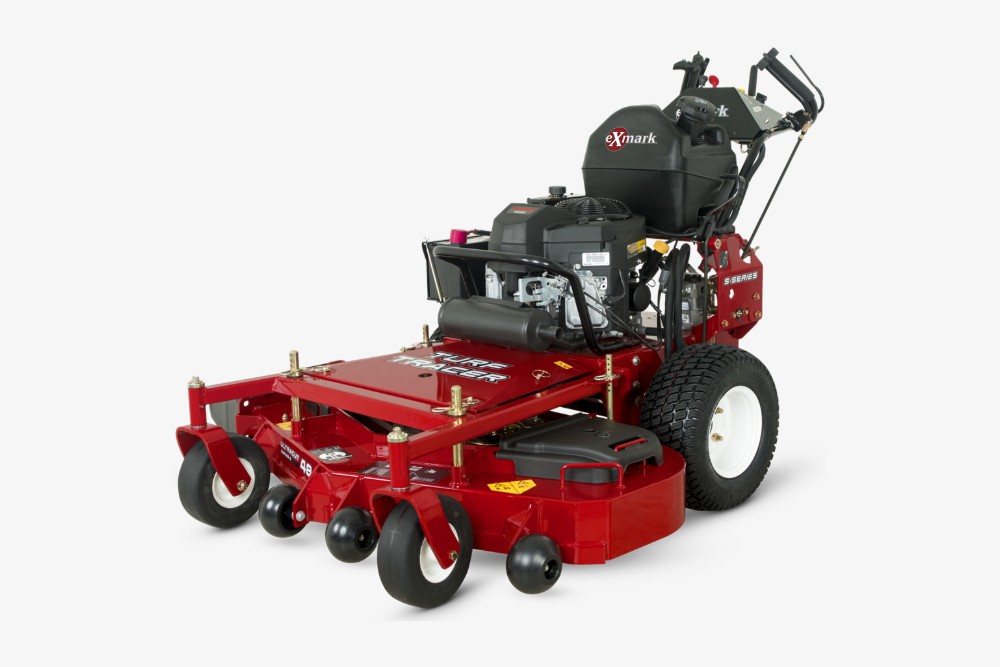

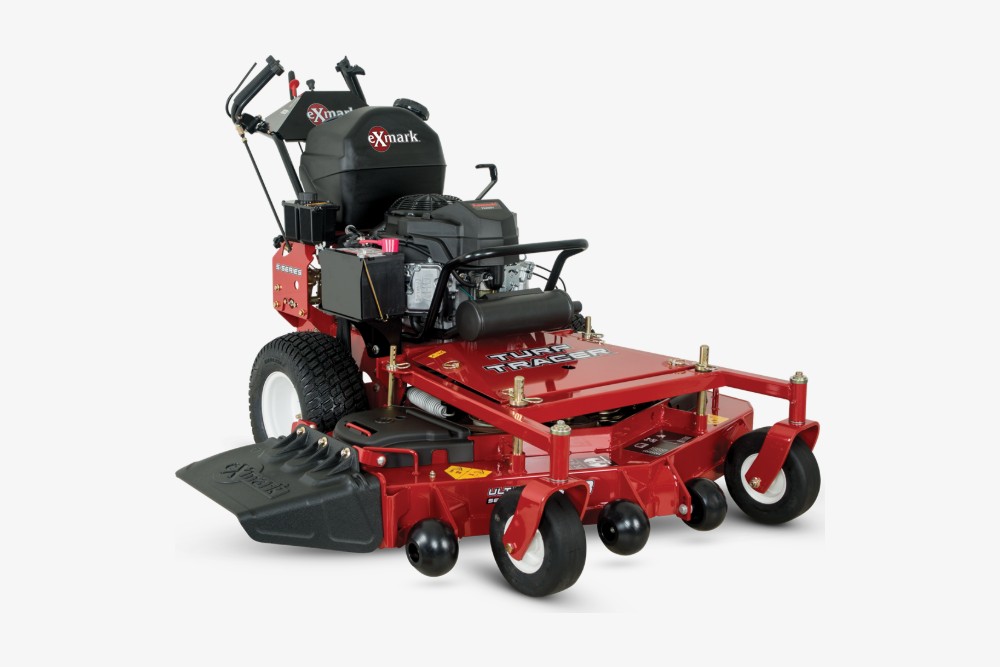

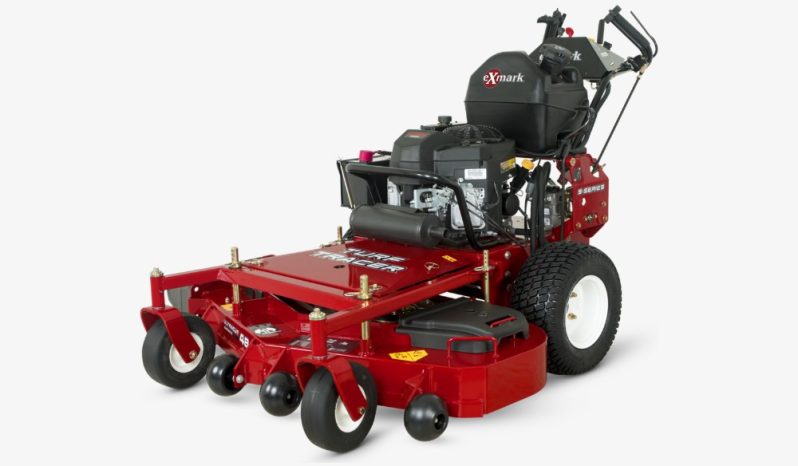

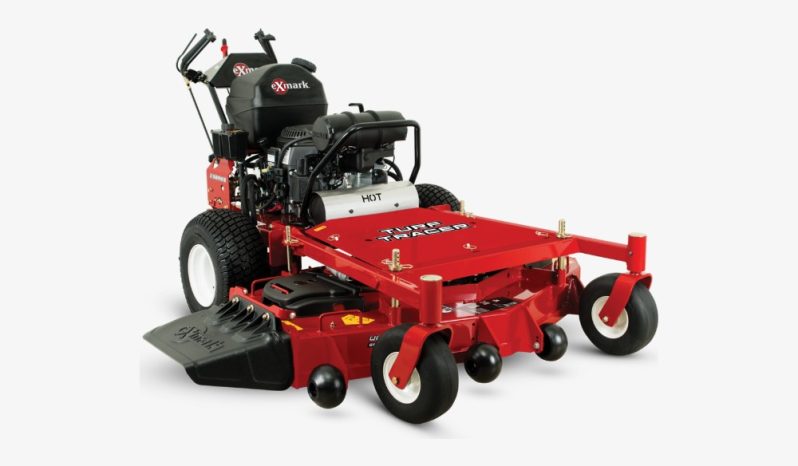

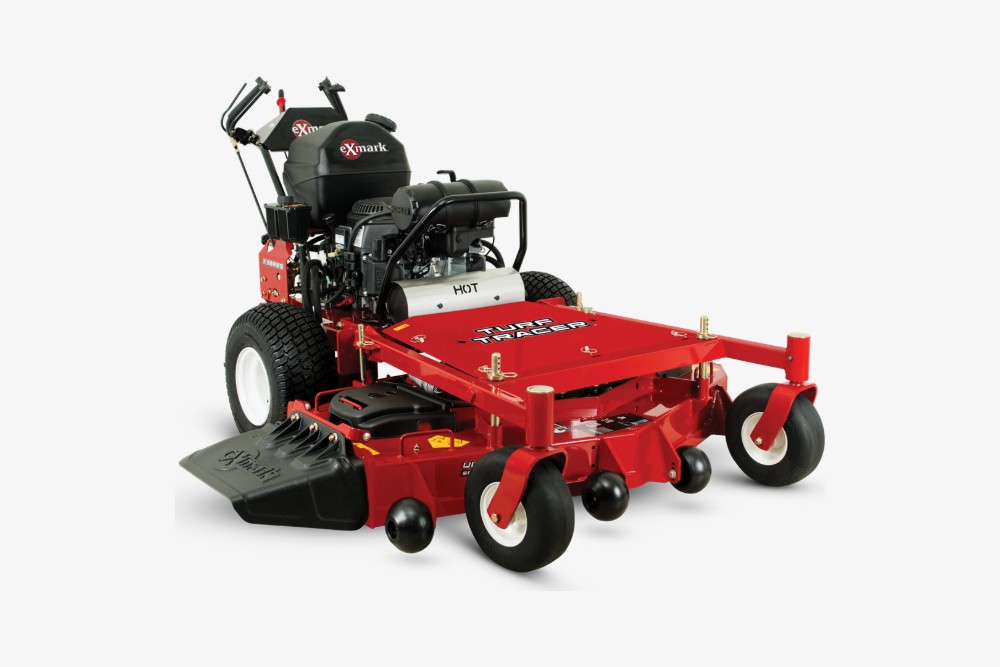

The Turf Tracer S-Series commercial walk-behind lets you choose from a range of rugged engines and match that power to a 36″, 48″ or 52″ cutting deck. Whatever the setup, you get Exmark’s patented Enhanced Control System (ECS) for ultimate operator comfort, which means day-long productivity. For larger, more powerful walk-behinds, see the Turf Tracer X-Series.
Request a Quote
Using the form below
Exmark Turf Tracer Series
| Make | Exmark |
| Model | Turf Tracer Series |
| Machine Type | Mower |
| Engine | Kawasaki, Kohler |
| Engine Fuel | Gas |
| Horsepower | 14.5 HP - 26 HP |
| Operating Weight | 586 lbs - 840 lbs |
| Width | 59.5″ to 73″ |
Key Features:
- New Electric Clutch: Proven among the most durable and reliable in the business, Exmark’s electric clutch makes belt servicing easier and faster.
- Forget Flats: Standard 9″ x 3.5-4″ smooth-tread, semi-pneumatic front caster tires virtually eliminate tire repair.
- Hour Meter Standard: Keep better maintenance records and track service intervals for longer life.
- Patented Enhanced Control System (ECS): Recent university tests showed landscape professionals prefer it to every other control system on the market.
- Floating Deck: Full-floating UltraCut deck, side discharge standard with a molded discharge chute and the option to bag or mulch.
Specifications:
- Models: TTS600GKA363E0 (36″), TTS600GKA483E0 (48″), TTS600GKA523E0 (52″), TTS481GKA483N0 (48″ with StandOn)
- Engine: Kawasaki FS600V, 18.5 HP, or Kawasaki FS481V, 14.5 HP (TTS481GKA483N0), V-Twin, 603 cc, carbureted
- Fuel: gas, 5-gallon single tank with single fill location
- Starter: electric, 12-volt battery with 15-amp alternator; recoil on TTS481GKA483N0 (no battery, 5-amp clutch coil)
- Drive: twin Hydro-Gear variable-displacement pumps and twin Parker/Ross wheel motors with 1″ tapered shafts, hydrostatic
- Speed: infinitely variable, 0 to 6.2 mph forward, 0 to 2.2 mph reverse
- Steering: Enhanced Control System (ECS) hydro drive, forward/reverse, left/right or zero-turn
- PTO: electromagnetic 105 ft-lb clutch
- Deck: full-floating UltraCut Series 3, side discharge standard with molded chute, option to bag or mulch
- Deck construction: formed, continuously seam-welded 10-gauge top, 7-gauge side skirt, 7-gauge welded spindle mounts
- Cutting height: 1.5″ to 4.5″ in 0.5″ increments, manual lift with hairpin
- Blades: two 18″ (36″), three 16.25″ (48″), three 18″ (52″), tip speed approx. 18,500 fpm
- Spindles: no maintenance, sealed and non-greasable
- Tires: 9 x 3.5-4 smooth-tread semi-pneumatic front casters, 16 x 7.5-8 4-ply Turf Master drive
- Safety: Operator Presence Controls, lever-actuated mechanical compression parking brake
- Standard: engine hour meter
- Productivity: 1.8 acres per hour (36″), 2.4 (48″), 2.6 (52″), for 1 to 3 acres
- Dimensions: 59.5″ wide and 73.7″ long (48″), 64.3″ wide and 75.9″ long (52″), 42″ high
- Curb weight: 586 lbs (48″), 690 lbs (52″)
- Warranty: 2-year limited, commercial and consumer
Exmark Turf Tracer wide-area walk-behinds are an investment in the future. Choose a 36″, 48″, 52″ or 60″ deck built with industry-leading parts and accessories, powered by a Kohler or Kawasaki engine to keep you running all day, season after season. Ground speeds reach 6.75 mph, and the UltraCut Series 3 and Series 4 decks with the patented Enhanced Control System (ECS) give precision cutting and operator comfort.

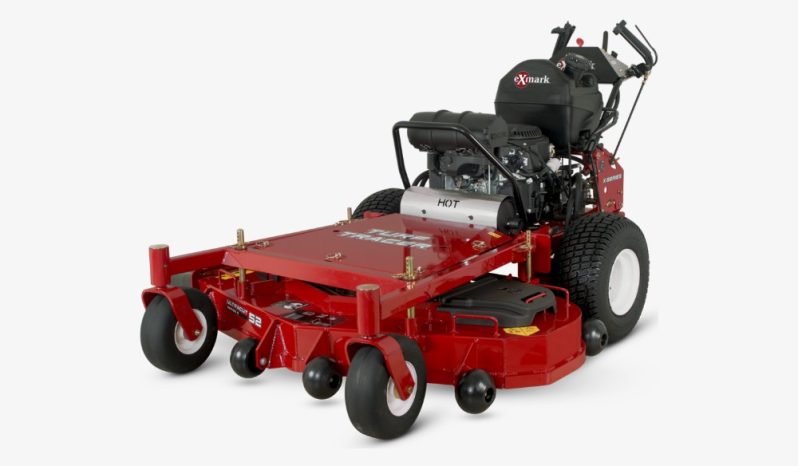

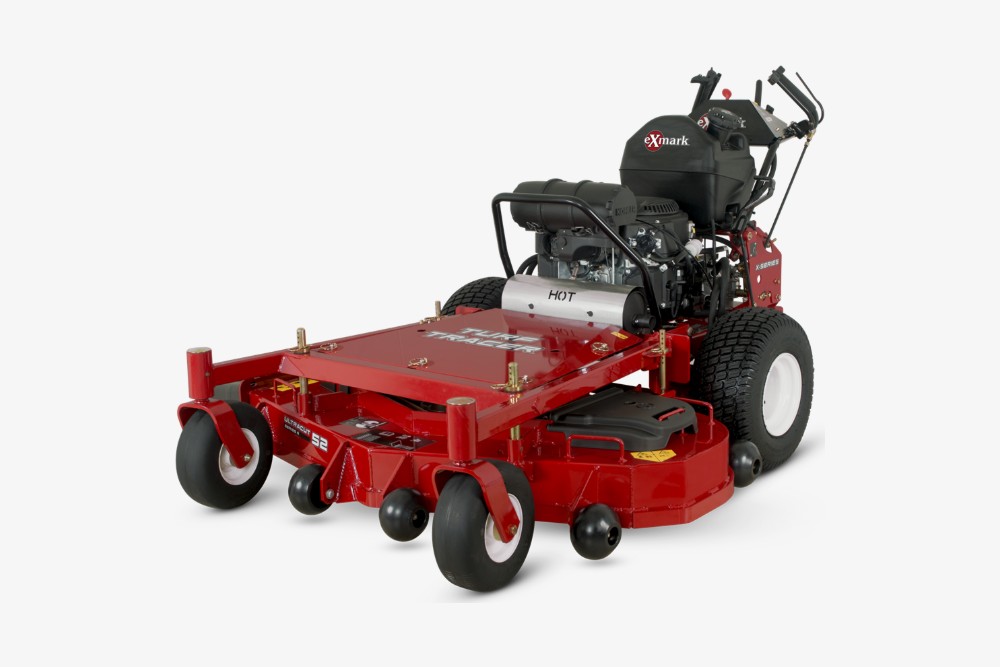

By virtually any measure, the Turf Tracer X-Series is the definitive, full-featured hydro mower. Whether you choose the 52″ or 60″ deck, the UltraCut Series 4 with splined spindle blade driver is up to the toughest jobs, and so are the X-Series engines, including Kohler EFI. Ground speeds up to 6.75 mph forward and 2.25 mph in reverse rank it among the most productive mowers in its class. See Exmark’s full lineup of commercial walk-behinds for the rest of the self-propelled range.
Key Features:
- Patented Enhanced Control System (ECS): Recent university tests showed landscape professionals prefer it to every other control system on the market.
- Floating Deck: Full-floating UltraCut deck, side discharge standard with a molded discharge chute and the option to bag or mulch.
- Superior Air Filtration: Heavy-duty canister air filtration comes standard for longer engine life, more efficient performance and simple maintenance.
- Clutch Performance: A large-capacity electromagnetic PTO clutch gives excellent durability and extra-long life.
- Superior Cut Quality: UltraCut Series 4 deck.
- Deck Options: Up to a 60″ deck.
Specifications:
- Models: TTX691GKA52400 (52″, Kawasaki), TTX691GKA60400 (60″, Kawasaki), TTX730EKC52400 (52″, Rehlko (Kohler)), TTX730EKC60400 (60″, Rehlko (Kohler)), TTX730EKC604N0 (60″, Rehlko (Kohler), with StandOn)
- Engine: Kawasaki FX691V, 726 cc, 22 HP, carbureted, or Rehlko (Kohler) Command EFI, 747 cc, 23.5 HP
- Fuel: gas, 5-gallon single tank with single fill location
- Starter: electric, 12-volt battery with 20-amp alternator
- Air filter: heavy-duty canister
- Drive: twin Hydro-Gear variable-displacement pumps and twin Parker/Ross wheel motors with 1″ tapered shafts, hydrostatic
- Speed: infinitely variable, 0 to 6.75 mph forward, 0 to 2.25 mph reverse
- Steering: Enhanced Control System (ECS) hydro drive, forward/reverse, left/right or zero-turn
- PTO: electromagnetic 200 ft-lb clutch
- Deck: full-floating UltraCut, side discharge standard with molded chute, option to bag or mulch
- Deck construction: formed, continuously seam-welded 10-gauge top, 7-gauge side skirt, 7-gauge welded spindle mounts
- Cutting height: 1.5″ to 4.5″ in 0.5″ increments, manual lift with hairpin
- Blades: three 18″ (52″) or three 20.5″ (60″), tip speed approx. 18,500 fpm
- Spindles: no maintenance, sealed and non-greasable, splined blade driver
- Tires: 11 x 4.0-5 smooth-tread semi-pneumatic front casters, 18 x 8.5-8 4-ply Turf Master drive
- Safety: Operator Presence Controls, lever-actuated mechanical compression parking brake
- Standard: enhanced engine hour meter
- Productivity: 2.83 acres per hour (52″, 1 to 3 acres), 3.27 acres per hour (60″, 3 to 5 acres)
- Dimensions: 64.3″ wide, 75.9″ long, 42″ high (52″); 73″ wide, 104.8″ long, 45″ high (60″)
- Curb weight: 690 lbs (52″), 840 lbs (60″)
- Warranty: 2-year limited, commercial and consumer
Exmark Turf Tracer wide-area walk-behinds are an investment in the future. Choose a 36″, 48″, 52″ or 60″ deck built with industry-leading parts and accessories, powered by a Kohler or Kawasaki engine to keep you running all day, season after season. Ground speeds reach 6.75 mph, and the UltraCut Series 3 and Series 4 decks with the patented Enhanced Control System (ECS) give precision cutting and operator comfort.

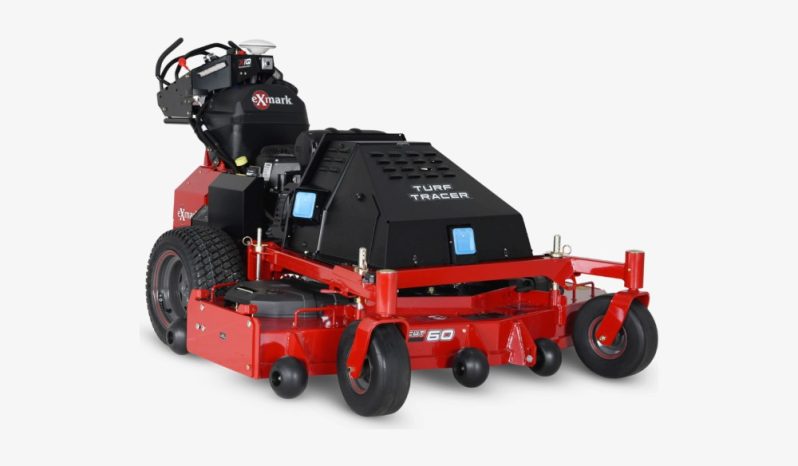

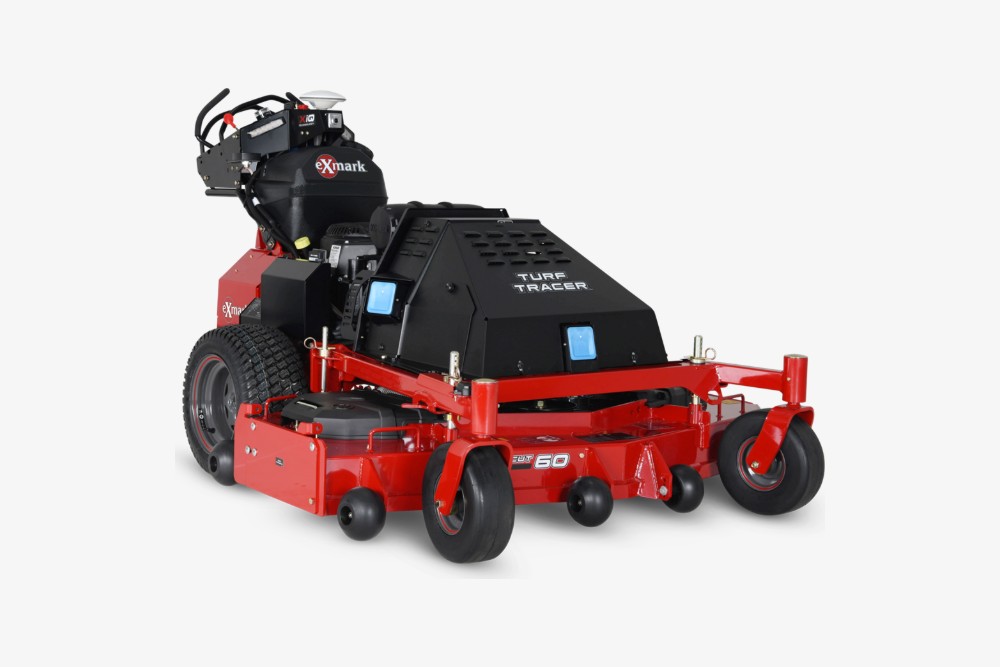

The autonomous Turf Tracer with XiQ is the next generation of Exmark innovation. Built for reliable supervised autonomy, it lets crews do more, more efficiently, with the same number of people. The XiQ technology package is a fully integrated, high-integrity navigation and safety system: high-precision GNSS and RTK location combined with an ISO-certified radar detection system that identifies obstacles and prevents collisions. It comes with a 60″ full-floating UltraCut deck and mows in autonomous or manual mode. Built on the trusted Turf Tracer platform for municipalities, campuses, parks, sports fields and large commercial sites, it turns your Turf Tracer into a labor multiplier.
Key Features:
- Signature Exmark Cut Quality: The UltraCut Series 4 deck uses maintenance-free spindles with splined blade drivers that stop bolt tightening on impact. The patented bearing design on the idler arm pivot needs only annual service. The micro-mulch system comes standard and improves lawn health by spreading clippings evenly back into the turf.
- Obstacle Detection: An ISO-certified radar system with high-integrity obstacle avoidance stops the machine when it detects an obstacle instead of trying to go around it, keeping the after-cut appearance and the reliability you expect from Exmark.
- Simple Operation: Map a new property by pressing “record” and driving a single trim pass along the outer boundary and exclusion areas. The map is stored and recalled by any XiQ unit in your fleet on the next visit.
- Mobile App: Android and iOS app to manage your autonomous fleet, store property maps and view live machine status.
- XiQ Technology: Precise mapping for an exceptional after-cut appearance. An engine-driven generator with electric wheel motors gives precise, repeatable passes, consistent striping and less overlap.
- Supervised Autonomy: One operator can mow several areas of the same property at once. Make sure the property is ready and deploy the machine.
Specifications:
- Model: TTA749AKC604N0
- Engine: Rehlko (Kohler) Command EFI ECV749, 747 cc, 26 HP, 3,750 rpm
- Fuel: gas EFI
- Air filter: heavy-duty canister
- Electrical: 12-volt starting system with 20-amp alternator, 48-volt ground drive system with a 5kW generator
- Drive: Dana electric transmission, infinitely variable
- Steering: electric drive with twin levers, forward/reverse, left/right or zero-turn
- PTO: electromagnetic 200 ft-lb clutch
- Deck: 60″ full-floating UltraCut Series 4, mulch kit permanently installed
- Deck construction: formed, continuously seam-welded 10-gauge top, 7-gauge side skirt, 7-gauge welded spindle mounts
- Cutting height: 1″ to 4.5″ in 1/4″ increments, manual lift with hairpin
- Blades: three 20.5″
- Spindles: no maintenance, sealed and non-greasable
- Tires: 11 x 4.0-5 smooth-tread semi-pneumatic front casters, 18 x 8.5-10 4-ply Grass Master drive
- Safety: fully integrated, high-integrity system, automatic parking brake
- Warranty: 4 years or 1,250 hours limited, commercial and consumer
Exmark Turf Tracer wide-area walk-behinds are an investment in the future. Choose a 36″, 48″, 52″ or 60″ deck built with industry-leading parts and accessories, powered by a Kohler or Kawasaki engine to keep you running all day, season after season. Ground speeds reach 6.75 mph, and the UltraCut Series 3 and Series 4 decks with the patented Enhanced Control System (ECS) give precision cutting and operator comfort.
Choosing the Right Model
- Turf Tracer S-Series: 36″, 48″ or 52″ decks with a Kawasaki FS600V or FS481V engine, up to 6.2 mph, 1.8 to 2.6 acres per hour, for 1 to 3 acres.
- Turf Tracer X-Series: 52″ or 60″ UltraCut Series 4 decks with a Kawasaki FX691V or Rehlko (Kohler) EFI engine, up to 6.75 mph, 2.83 to 3.27 acres per hour, for up to 5 acres.
- Turf Tracer with XiQ: 60″ autonomous model with GNSS/RTK navigation, radar obstacle detection and a mobile app, for supervised autonomous or manual mowing on large sites.
Common Features Across All Models
- Turf Tracer wide-area walk-behind platform
- Steering control for forward/reverse, left/right or zero-turn
- Full-floating UltraCut deck
- Formed, continuously seam-welded 10-gauge deck top with 7-gauge side skirt
- No-maintenance, sealed and non-greasable spindles
- Electromagnetic PTO clutch
- Manual deck lift with hairpin
- Drive wheel release to move the unit without the engine running
