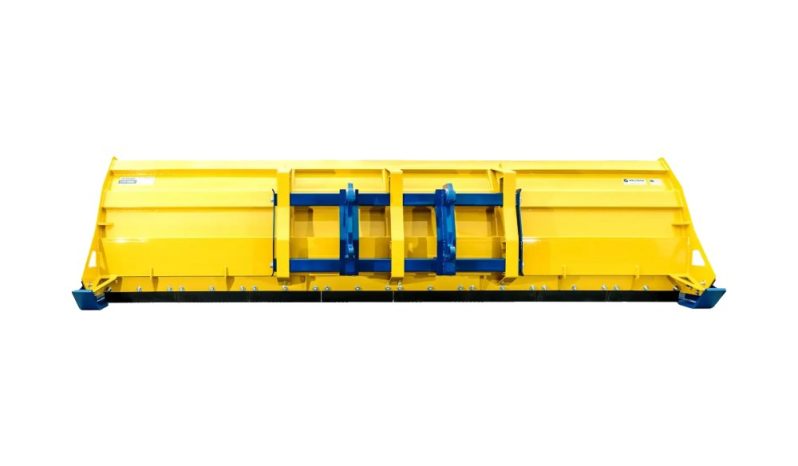

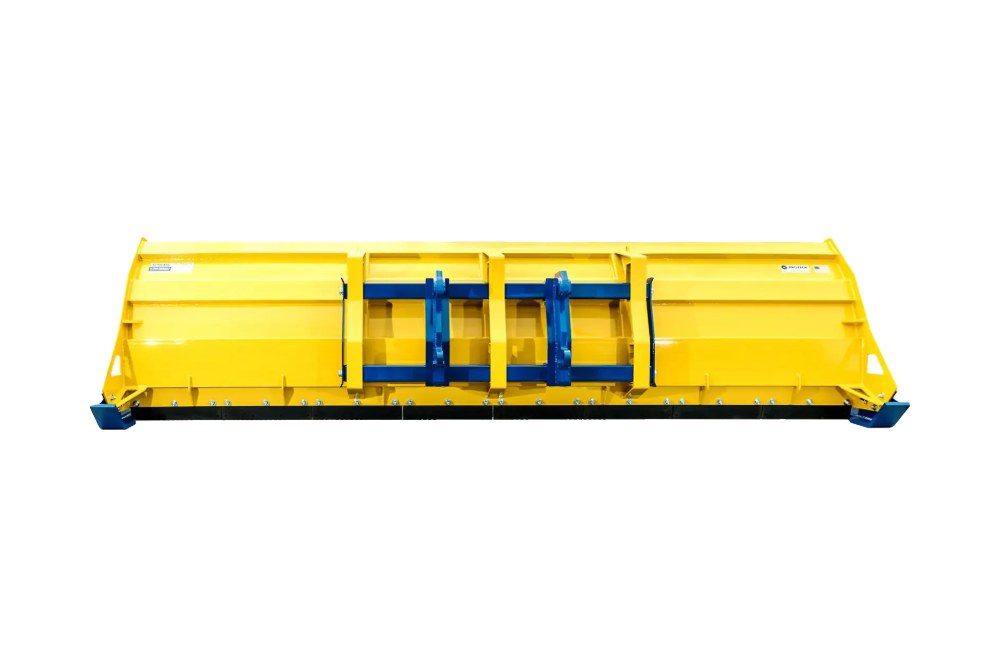

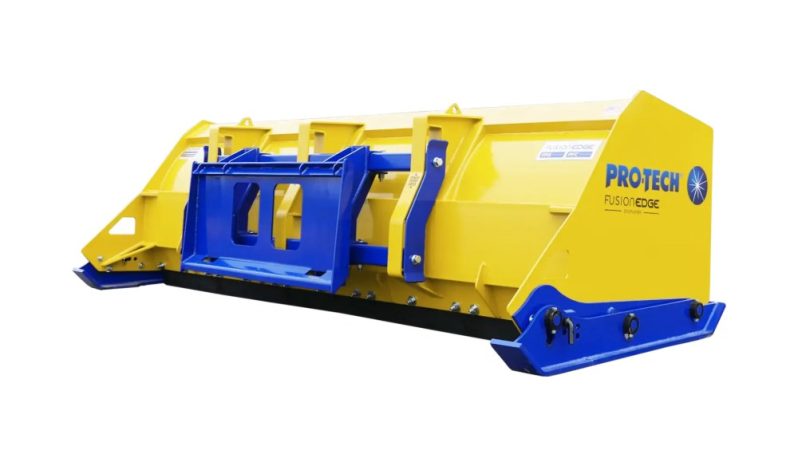

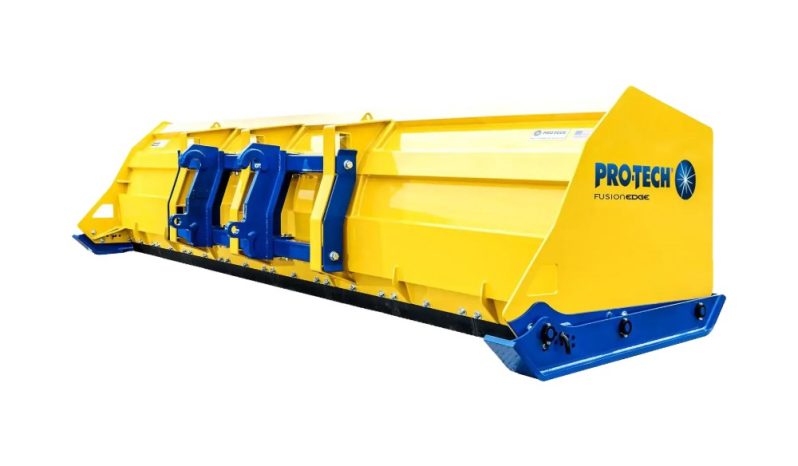

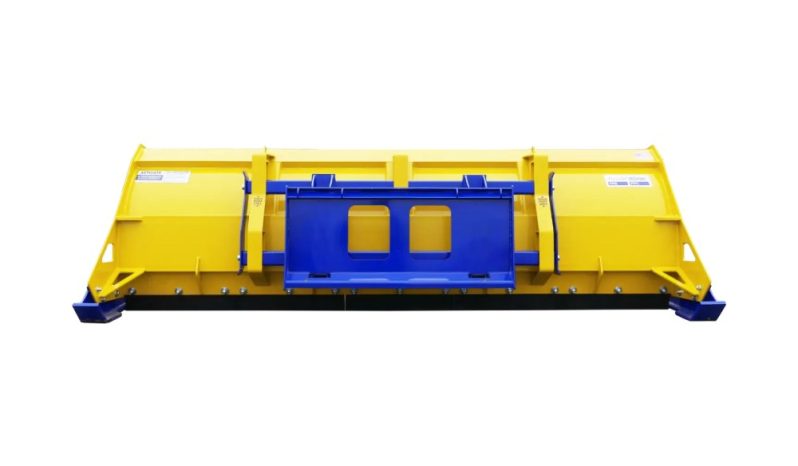

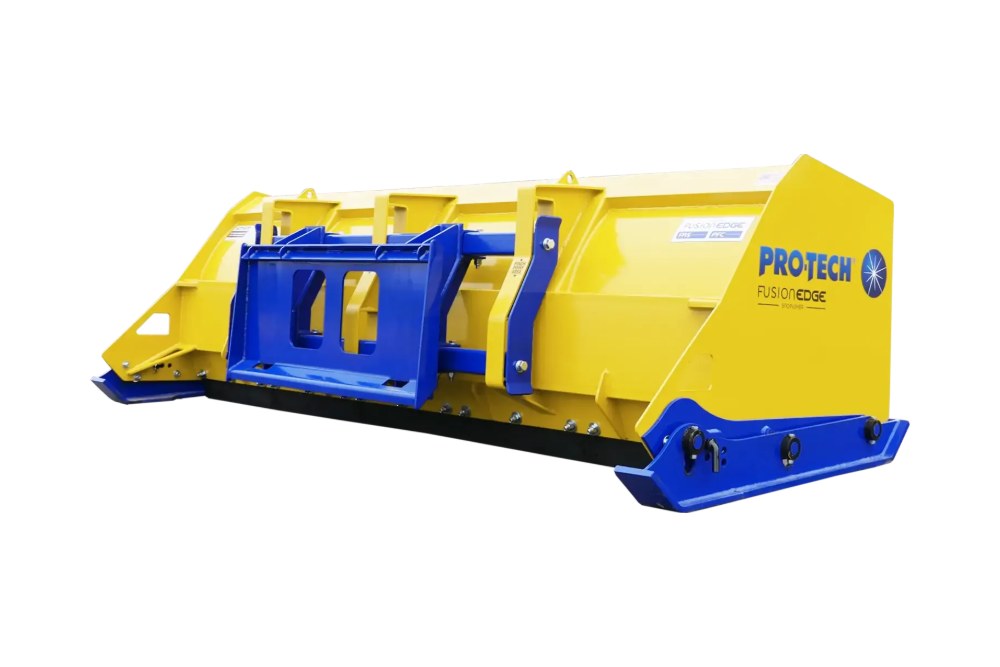

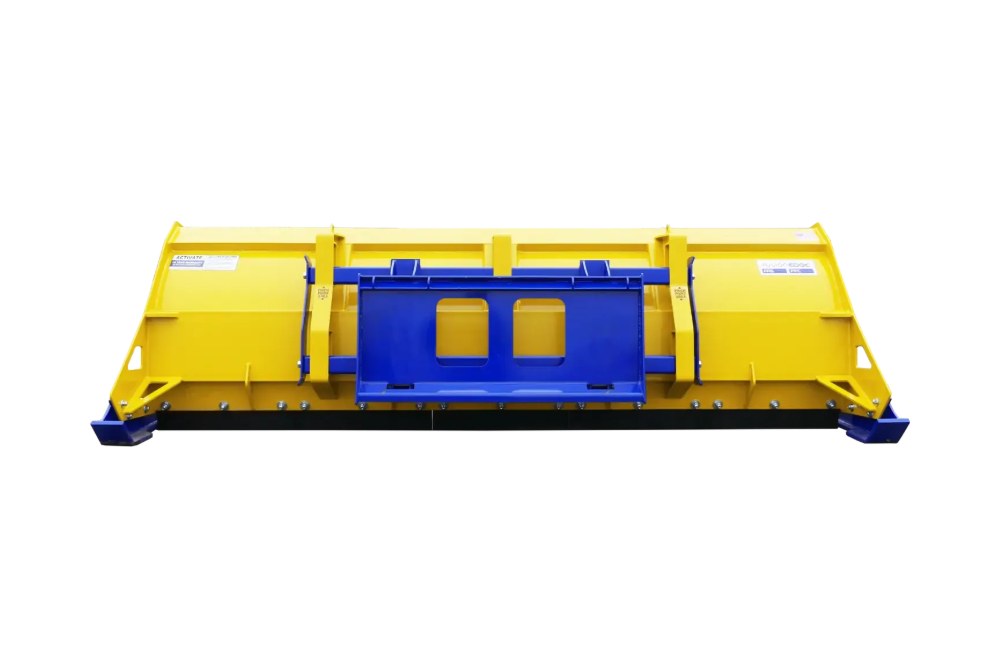

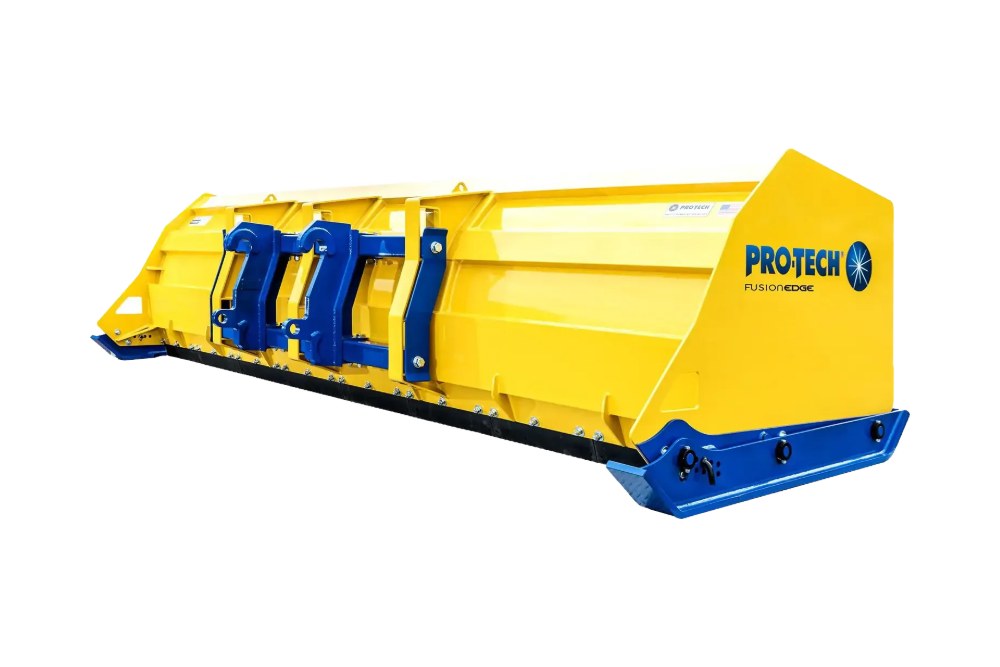

Fusion Edge Sno Pusher

Make	Pro-Tech
Model	Fusion Edge
Machine Type	Sno Pusher
Operating Weight	1,300 lbs - 2,670 lbs
Width	8′ to 16′

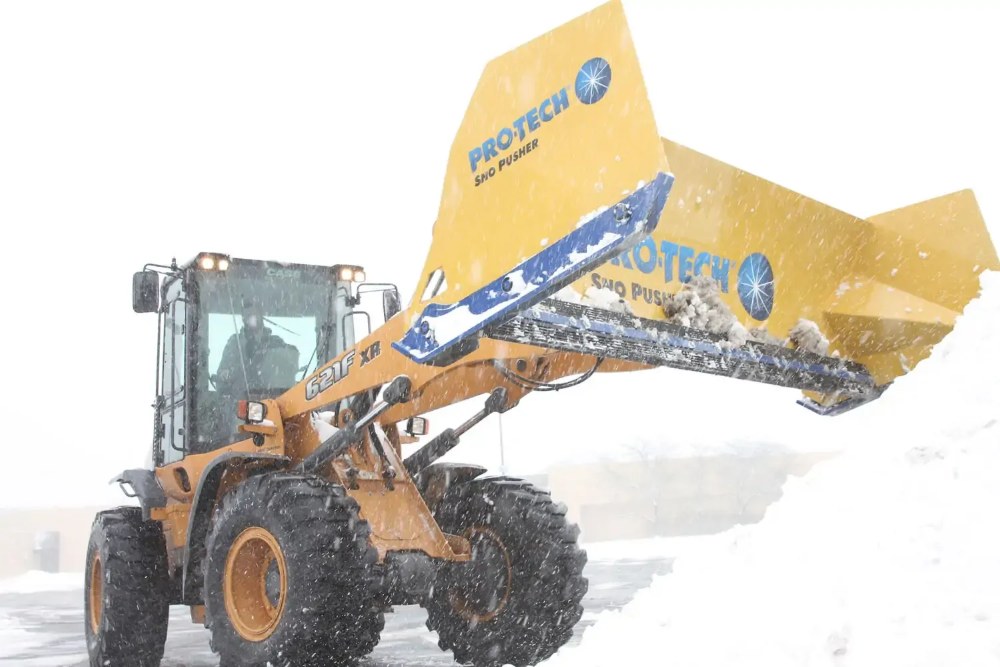

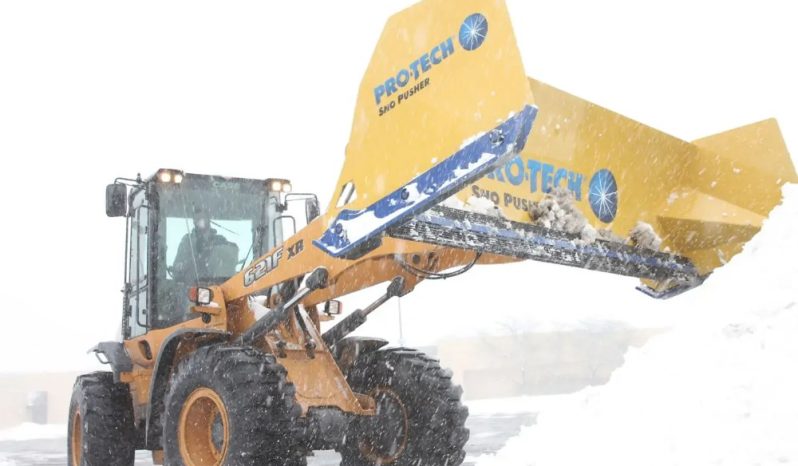

The Fusion Edge Sno Pusher is a new kind of sectional snow pusher that gives you the best of both worlds: the surface finish of a steel edge and the ease of use of a rubber edge. Pro-Tech tested it for over three years in the harshest upstate New York winters to get the right mix of performance and durability at a reasonable price, with an industry-first cutting edge, wear shoe and coupler design. Pair it with a loader, compact wheel loader, backhoe, skid steer or compact tractor; sizes range from 10′ to 16′.

Key Features:

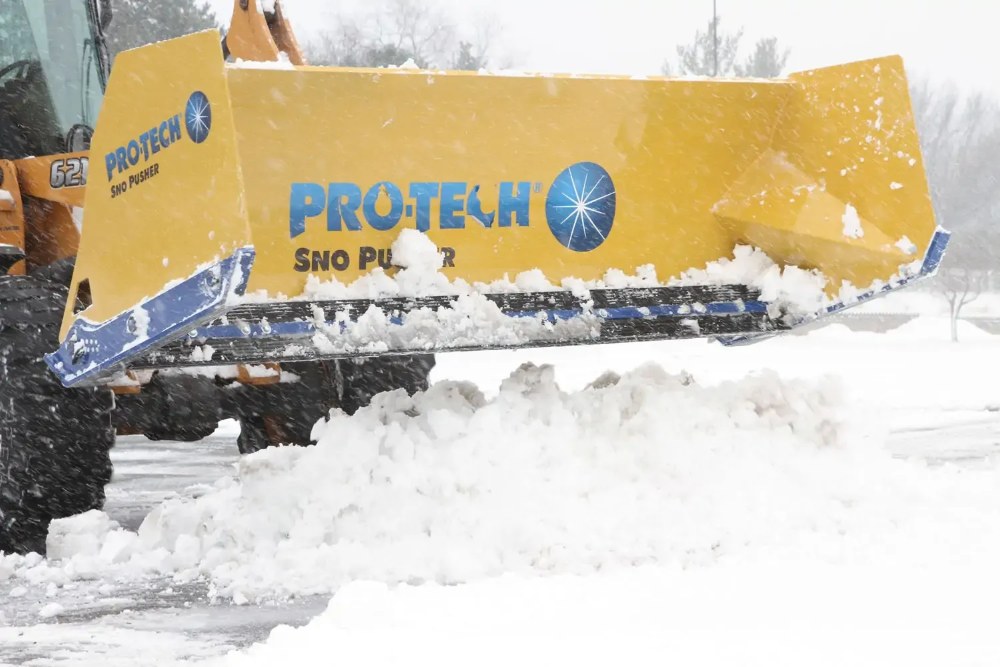

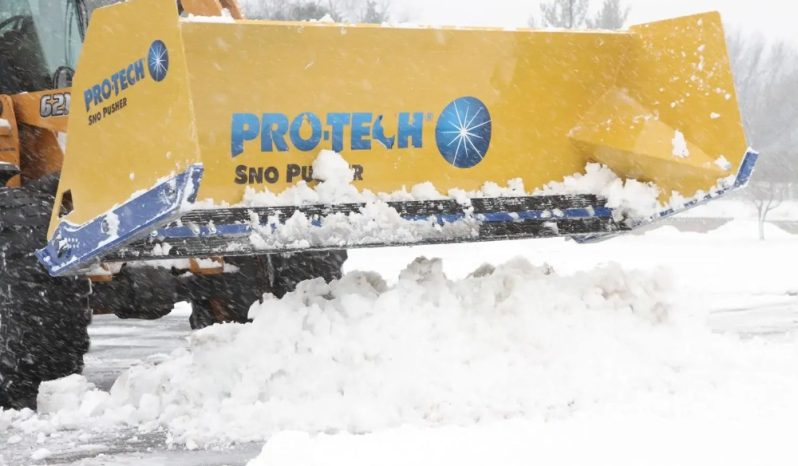

Fusion Edge: Snow and ice pros argue over rubber versus steel edges; the Fusion Edge gives you both. Its steel-infused rubber edge squeegees wet, heavy snow and also scrapes hardpack. It comes in 24″ sections for easy replacement, lasts 350 to 500 hours of heavy plowing, has steel embedded on both sides so it can be flipped when one side wears, and trips over obstacles such as manhole covers.

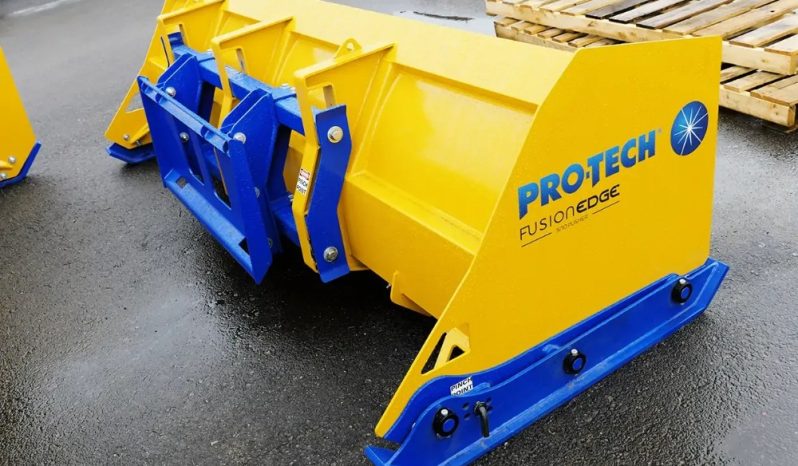

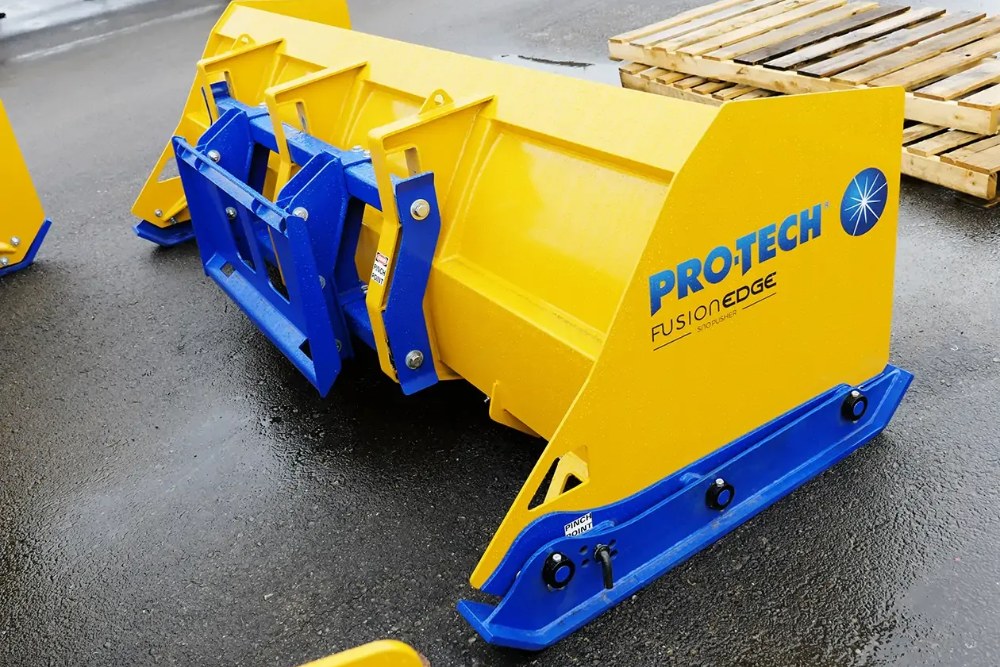

Pro Float Coupler: Most floating couplers only move up and down. The Pro Float Coupler also moves sideways and oscillates, so the plow floats freely, contours to the surface and gives the operator more control. The bolt-on design lets you move it between machines, with connections including CAT Fusion, CAT IT, JRB, Euro, Universal and post style, and it has no pushing or stacking limitations.

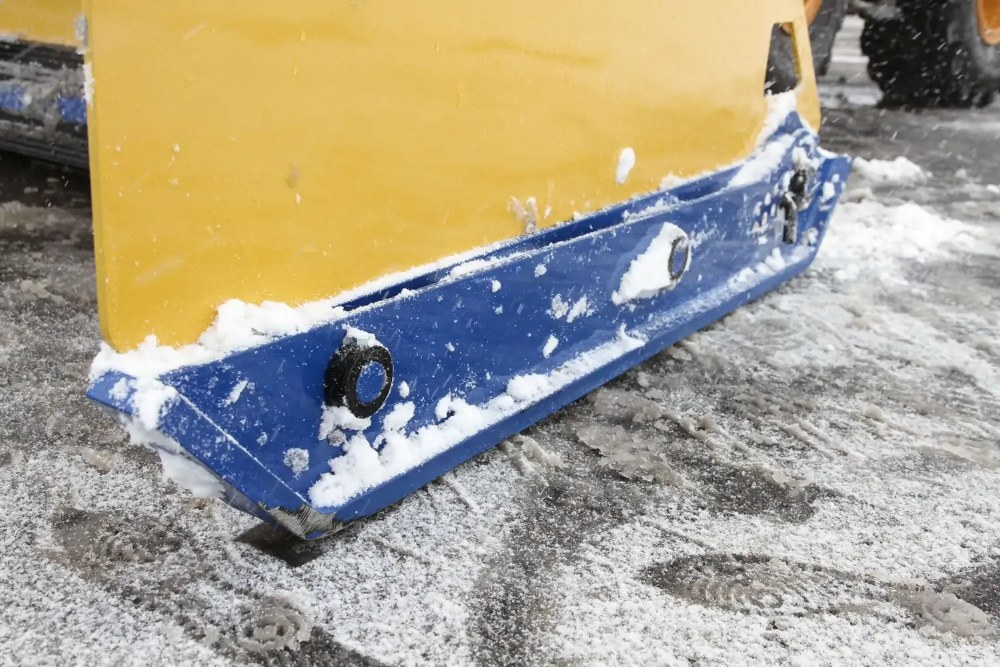

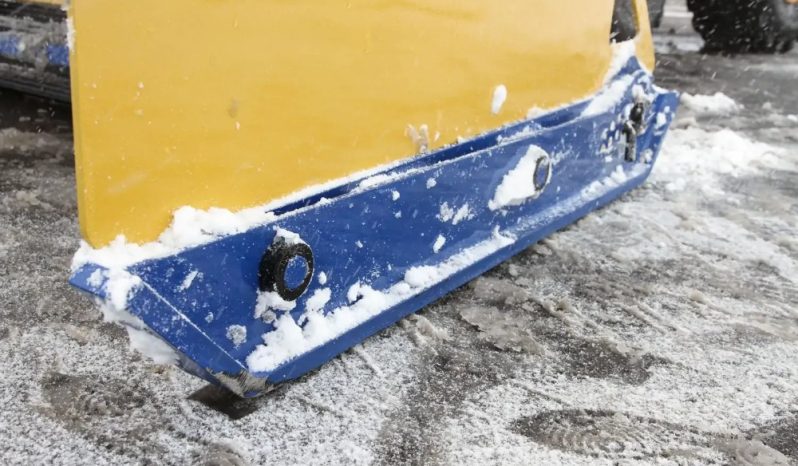

Fast Attack Shoes: Instead of loosening bolts and shifting a long rubber edge, you set the edge depth at the wear shoes: pull a pin on each shoe, find the best position and re-insert it. Less maintenance, and you choose how aggressively to plow, from gravel to hardpack snow and ice. Based on the Self-Leveling Shoe, it keeps the plow level at all times.
Don’t Complicate Things: A sectional snow pusher that gets the job done, is easy to use and costs significantly less than the competition.

Product Features:

Incredible surface clearance and ease of use
Industry first: steel-infused rubber cutting edge
Edge squeegees wet snow and scrapes hard-packed snow
Bolt-on, floating coupler contours to the surface

2′ cutting edge sections trip over obstacles
10-year warranty
For wheel loaders 150 hp and up, contact Pro-Tech for a product recommendation

Sizes by Machine:

Loader: 12′ to 16′, 48″ height, 100 hp to 125 hp machine minimum

Compact wheel loader, backhoe and skid steer: 8′ to 12′, 38″ height, 50 hp to 70 hp

For loaders, the Fusion Edge Sno Pusher comes in 12′, 14′ and 16′ widths, all 48″ tall.

Specifications:

Model	Width	Approx. Weight	Height	Snow Capacity	Machine Minimum
SG12L	12′	2,300 lbs	48″	15 yd	100 hp
SG14L	14′	2,485 lbs	48″	18 yd	120 hp
SG16L	16′	2,670 lbs	48″	21 yd	125 hp

For wheel loaders 150 hp and up, contact Pro-Tech for a product recommendation. Connection options include CAT Fusion, CAT IT, JRB, Euro, Universal and post style. Every Fusion Edge Sno Pusher comes with a 10-year warranty.

For compact wheel loaders, the Fusion Edge Sno Pusher comes in 8′, 10′ and 12′ widths, all 38″ tall.
