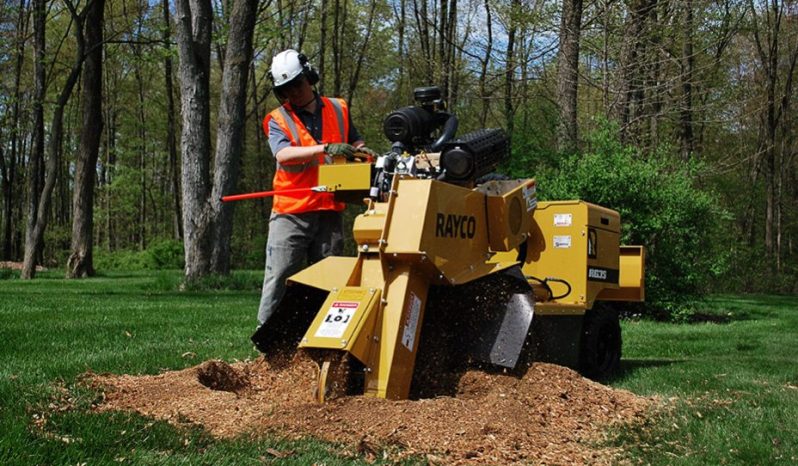

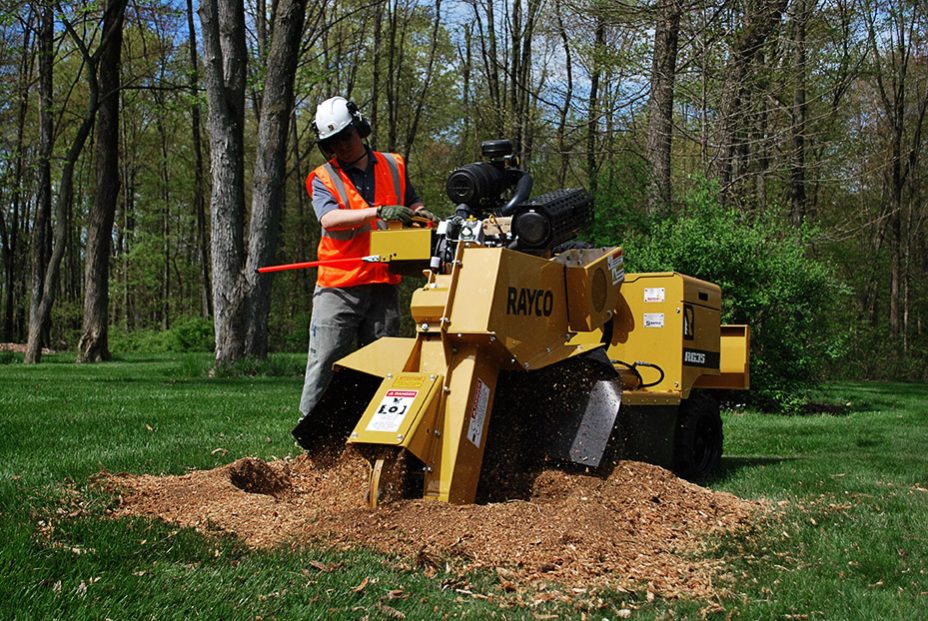

New Rayco RG27 Super Jr

The Super Jr stump cutter is the original self-propelled, backyard stump cutter that professionals have relied on since 1986. Today, there’s a Super Jr model to fit every job and every budget. The Super Jr comes with gasoline engine power options of 27hp and 37hp. To maximize visibility while cutting, all Super Jr’s have the drivetrain located on the far side of the cutter wheel. And Rayco’s exclusive, swing-out control station gives operators the best view while cutting and swings in-line with the machine for travel through gates. Wide, floatation tires with bar tread give the Super Jr a firm grip on the terrain, and dual wheels can be added for extra stability. Rayco’s exclusive slewing ring pivot design lowers the center of gravity and lets the Super Jr cut at maximum depth across the whole swing path.

• Swing-out operator control station for enhanced visibility.​
• Slewing ring pivot design for smooth and accurate cutter boom movement.​
• Wide, flotation tires with bar tread for improved traction.​
• Optional dual rear wheels for added stability.​
• Optional hydraulic backfill blade for efficient cleanup.​
• Electromagnetic clutch with “Quick Stop” brake system for safety.

Experience the efficiency and reliability of the Rayco RG27 Super Jr Stump Grinder. Designed to meet the demands of various stump grinding applications, it’s the perfect addition to your equipment fleet.

• Engine: 27-hp Vanguard (20 kW)​

• Fuel Type: Gasoline​

• Fuel Tank Capacity: 5 gallons (18.9 L)​

• Weight: 1,770 lbs (803 kg)​

• Dimensions:

  • Length: 114 inches (290 cm)

  • Height: 52 inches (132 cm)

  • Width: 35 inches (89 cm); with dual wheels: 52.5 inches (133 cm)​

• Cutting Wheel:

  • Diameter: 17.25 inches (43.8 cm)

  • Thickness: 1 inch (2.5 cm)

  • Teeth: 18 Rayco Super Teeth®​

• Cutting Dimensions:

  • Depth: 12 inches (30 cm)

  • Height: 24.5 inches (62.2 cm)

  • Width: 51 inches (130 cm)​

• Ground Drive: Single Speed​

• Tires: 18 x 8.5-10 R4 4-ply​

• Clutch: Electromagnetic with “Quick Stop” Brake System​

• Electrical System: 12 volts/15 AMP alternator​

• Oil Tank Capacity: 2 gallons (7.6 L)

• Powerful 27-hp Vanguard Engine: Provides reliable performance for efficient stump grinding. ​

• Swing-Out Operator Station: Enhances visibility during operation and swings in-line for easy transport through gates. ​

• Slewing Ring Pivot Design: Lowers the center of gravity and allows full cutting depth across the entire swing path. ​

• Wide Flotation Tires: Bar tread tires provide excellent traction; optional dual wheels offer added stability. ​

• Optional Hydraulic Backfill Blade: Simplifies cleanup, saving time and effort on the job site.
