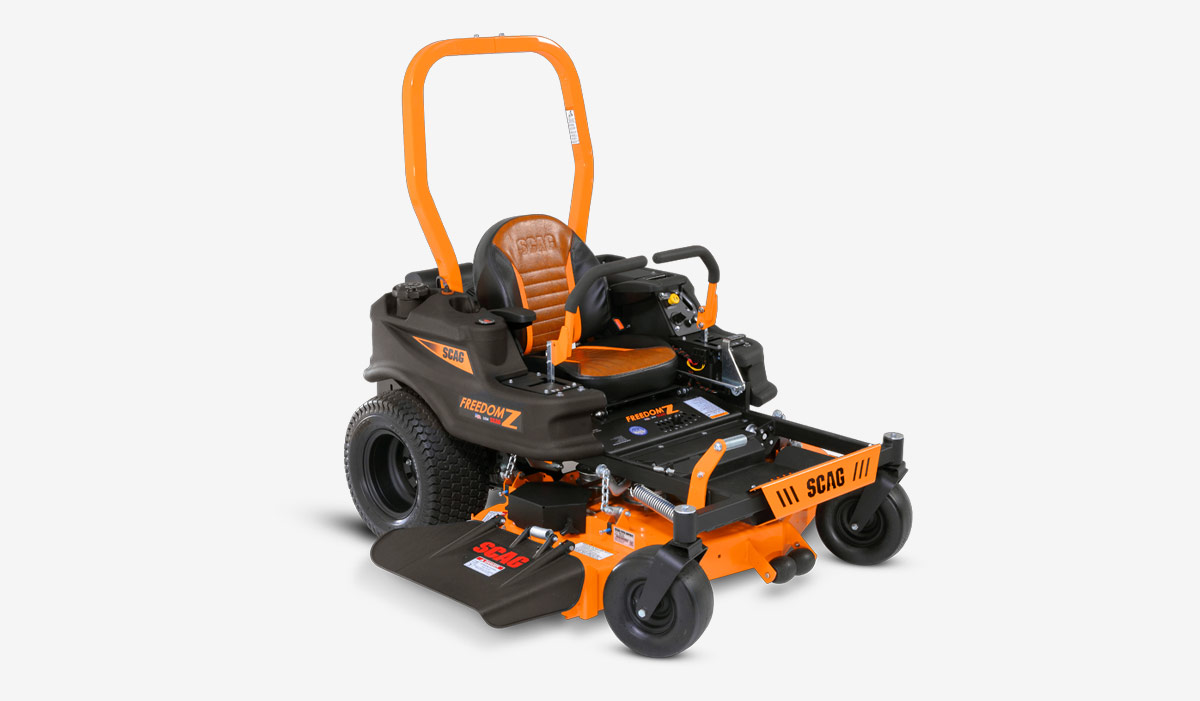

Scag Freedom Z

Condition	New
Make	Scag
Model	Freedom Z
Machine Type	Zero-Turn Riding Mowers
Engine	Kawasaki, Kohler, Briggs, Scag SR Series
Engine Fuel	Diesel, Gas
Horsepower	24 HP - 26 HP
Operating Weight	745 lbs - 765 lbs
Width	48″ to 52″

The Scag Freedom Z delivers commercial-grade features in a compact, user-friendly package, making it perfect for homeowners who demand professional results and small-scale lawn care professionals looking for a reliable workhorse. It combines Scag’s legendary build quality with smooth handling, powerful engine options, and exceptional cut quality—at a price that’s accessible without compromising performance.

Available in 48″ and 52″ Velocity Plus™ cutter decks, the Freedom Z offers the versatility to handle residential properties with tight spaces as well as open lawns. Its comfortable operator station and easy-to-use controls make mowing efficient and enjoyable.

Key Features

Deck options: 48″ and 52″ Velocity Plus™ cutter decks for a professional-grade cut
Engine options: Kawasaki FR and Kohler 7000 Series, up to 24 HP
Cutting height: 1.5″ to 4.5″ in 0.25″ increments
Top ground speed: Up to 8 MPH forward
Fuel capacity: 5.5 gallons
Heavy-duty Hydro-Gear ZT-3100 transaxles for smooth and reliable operation
Double-tube steel main frame for durability and long service life
High-back adjustable seat with armrests for comfort on long mowing sessions
Large drive tires for improved traction and ride quality

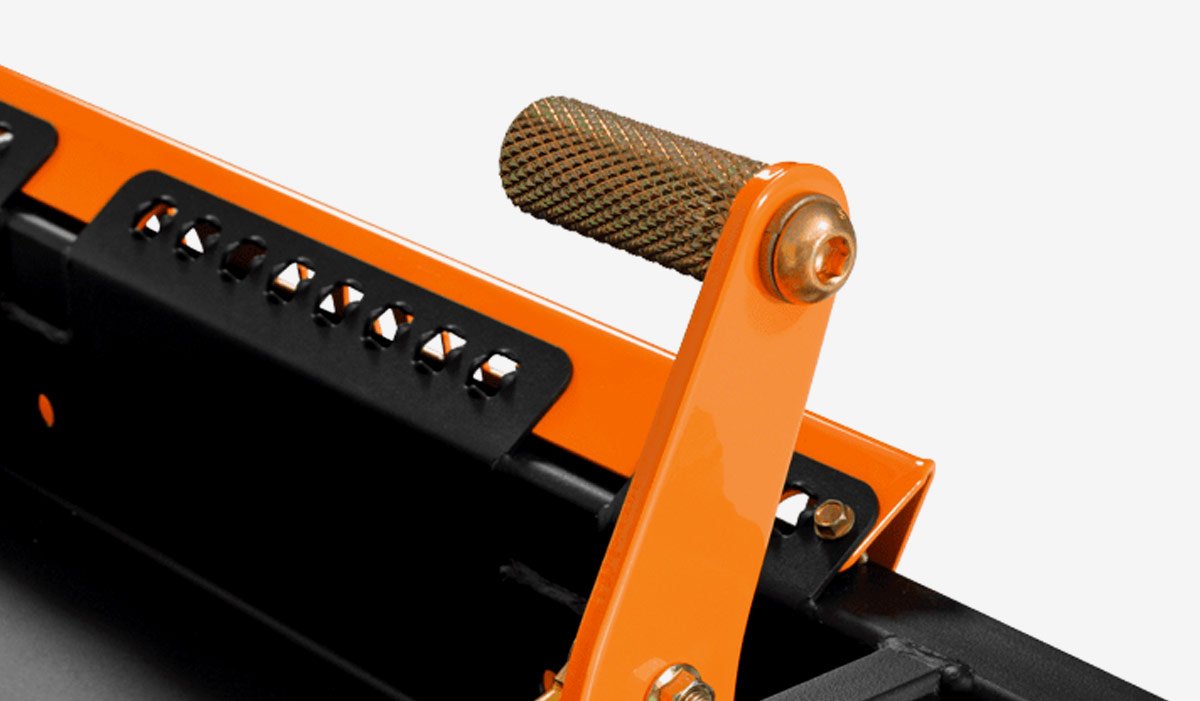

Foot-operated deck lift for quick cutting height changes
Foldable ROPS bar for safety and easy storage

Specifications (Range Across Models)

Engine power: 21 HP to 24 HP
Deck sizes: 48″, 52″
Cutting height: 1.5″ to 4.5″
Fuel capacity: 5.5 gallons
Top speed: Up to 8 MPH
Machine weight: ~780 lb (48″) to ~825 lb (52″)
Length: Approx. 74″ to 77″
Transport width: ~50″ (48″ deck, chute up) to ~54″ (52″ deck, chute up)

Model	Deck Width	Engine	Horsepower	MSRP
SFZ-48H-24KT	48″	Kohler® 7000 Series	24	$7,249
SFZ-48H-24SR	48″	Scag SR Series	24	$7,799
SFZ-48H-25CX	48″	Briggs & Stratton® CXi Series™	25	$7,149
SFZ-52H-25CX	52″	Briggs & Stratton® CXi Series™	25	$7,399
SFZ-52H-26KT	52″	Kohler® 7000 Series	26	$7,499

Product Dimensions	48″ Freedom Z	52″ Freedom Z
Length	73″	73″
Width (chute down)	60.5″	64.5″
Width (chute in transport position)	49″	53″
Height	60″	60″
Weight	745 lb	765 lb

General
Total Fuel Capacity	6.5 gallons
Drive Tires	20″ x 10″-10″
Caster Tires	11″ x 6″-5″
Seat	Padded with arm rests, adjustment forward and back (tools required)
Drive System
Drive System Type	Hydro-Gear ZT2800 Transaxle
Pumps	Internal Pump: 10 cc
Motors	Internal Motor: 16 cc
Forward Ground Speed	8 mph
Reverse Ground Speed	5 mph
Parking Brake	Hand-activated lever
Deck
Cutting Widths	48″ and 52″
Type	Hero Cutter Deck
Cutting Height	1.5″ to 4.5″ in .25″ increments
Deck Lift	Foot-operated pedal
Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles	Aluminum housing with sealed ball bearings.
Blade Engagement	Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.
