Built to work. Powered by a 33 hp Vanguard® BIG BLOCK gasoline V-twin engine, the Scag® Industrial Skid-Mount Truck Loader lets nothing escape with its unmatched strength. With safe, convenient transport features and a high-capacity fuel tank, it is built to optimize your operation’s productivity and stick around for the long haul.
Request a Quote
Using the form below
Scag Industrial Skid-Mount
| Make | Scag |
| Model | Industrial Skid-Mount |
| Machine Type | Truck Loader |
| Engine | Vanguard |
| Engine Fuel | Gas |
| Horsepower | 33 HP |
| Operating Weight | 675 lbs |
| Airflow | 4,680 CFM |
Key Features:

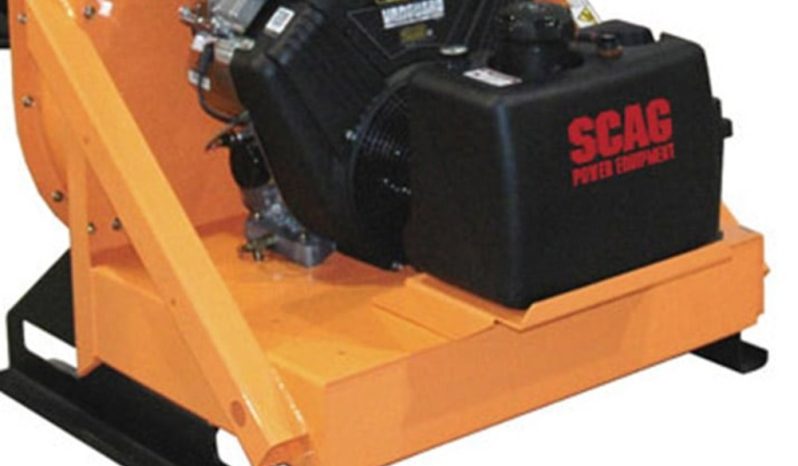

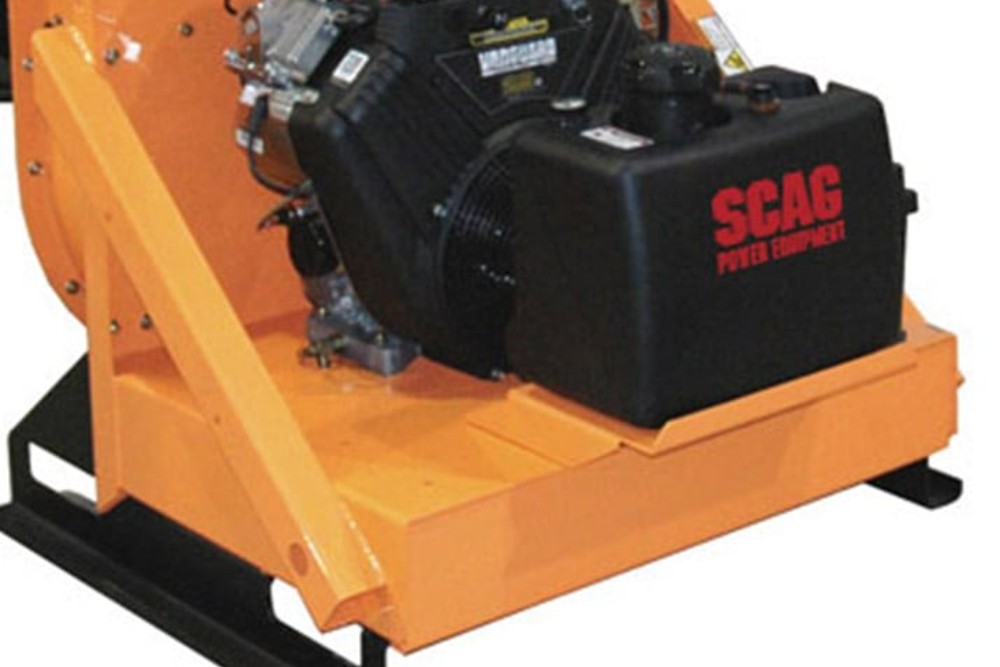

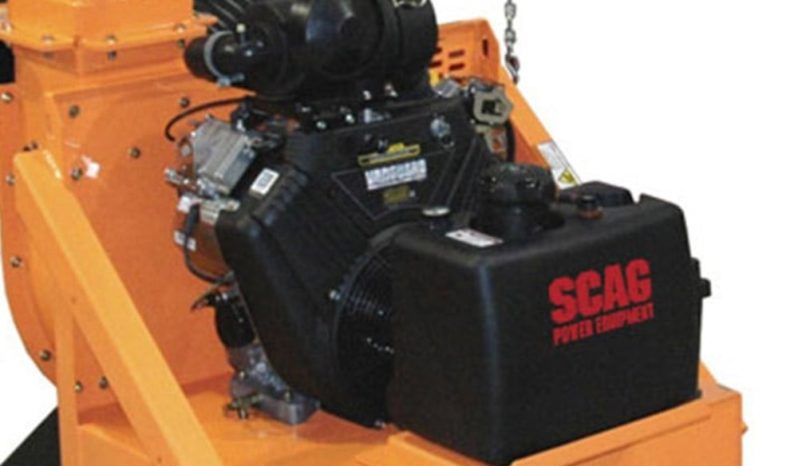

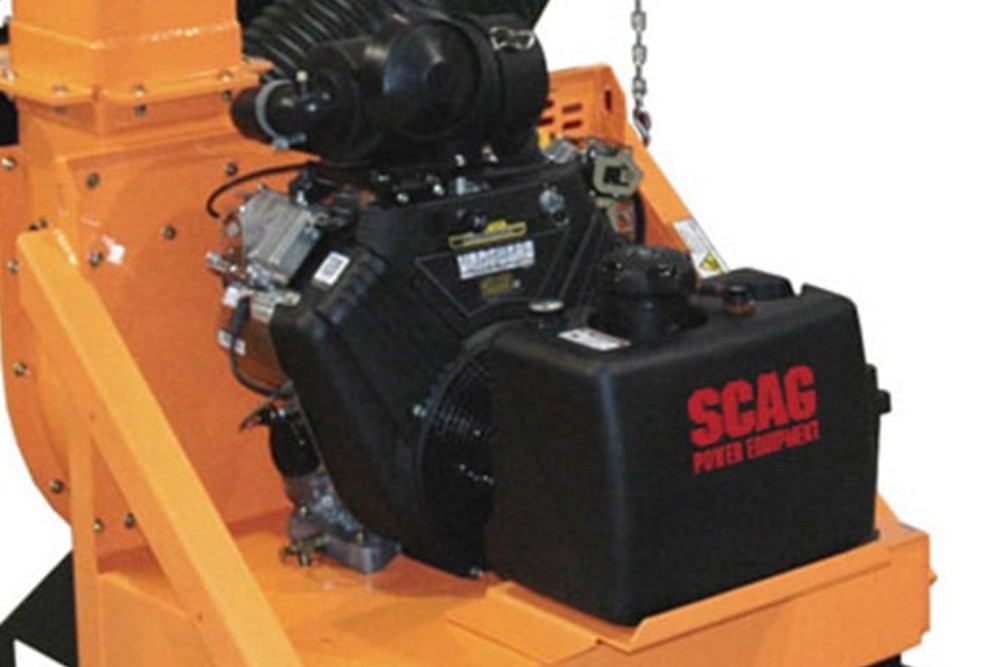

- Powerful engine: a 33 hp Vanguard® BIG BLOCK gasoline V-twin engine with electric start.

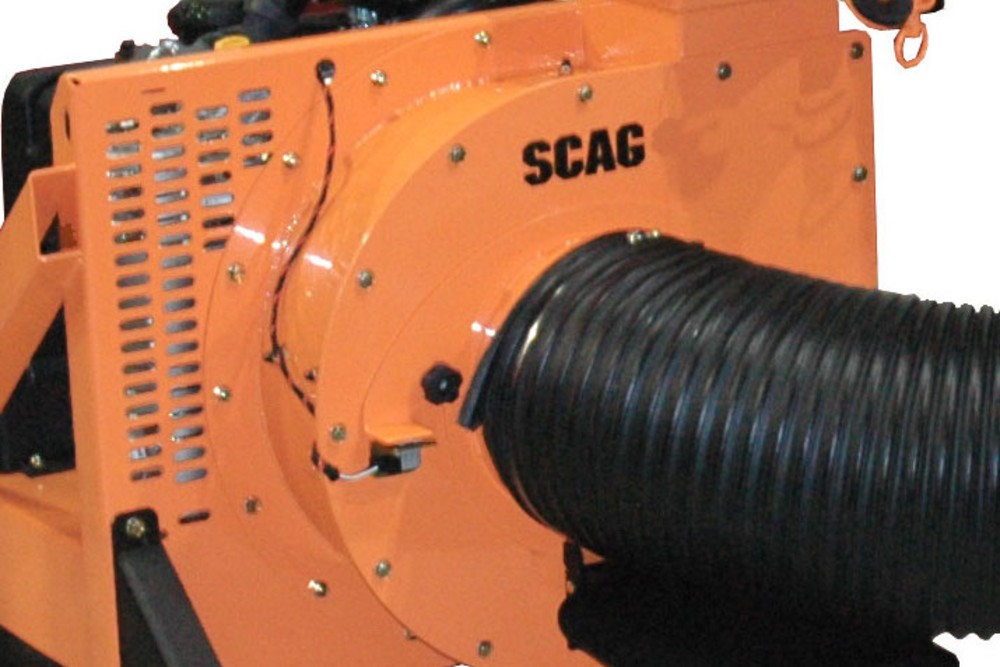

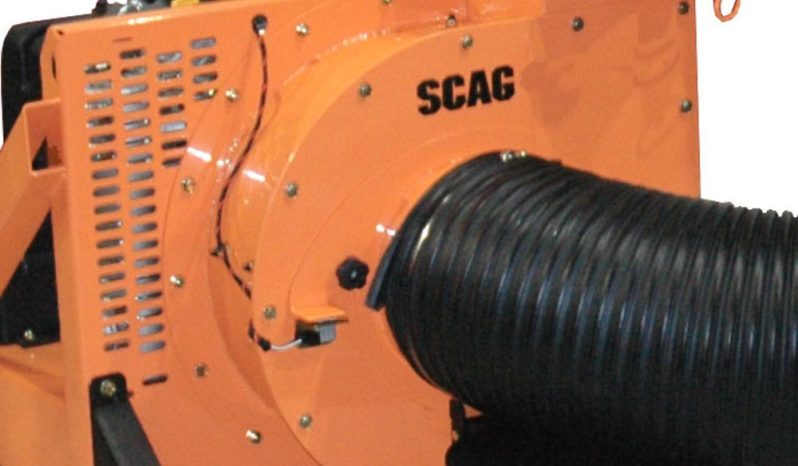

- Fabricated and balanced 20″, 4-blade impeller: inside the 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. It is dynamically balanced for reduced vibration, longer life and less stress on the engine, with an effective, high-output, debris-reducing design (up to 4,680 CFM).
- Large-capacity fuel tank with built-in gauge: a high-capacity, 5.5-gallon, plastic fuel tank with a large filler neck for easy filling keeps you on the job, and the built-in fuel gauge takes out the guesswork.
- Standard 4″ skid risers: four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be removed completely.
- 12″ steel intake nozzle: a large, replaceable intake nozzle is beveled to make debris pickup easy.
- Ambidextrous nozzle handle: a padded, large-diameter handle gives more leverage and easy maneuvering from either side.
- Locking boom arm and intake nozzle: a transport lock safely secures the boom arm and hose when not in use, and a nylon bearing gives smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transport. A quick-detach hose also makes transport, storage and cleaning quick and easy.
- Smart construction and easy service: a 1/4″-thick, bolt-in, replaceable wear liner extends service life, and a removable rear-housing cover gives easy access to the impeller and wear plates.

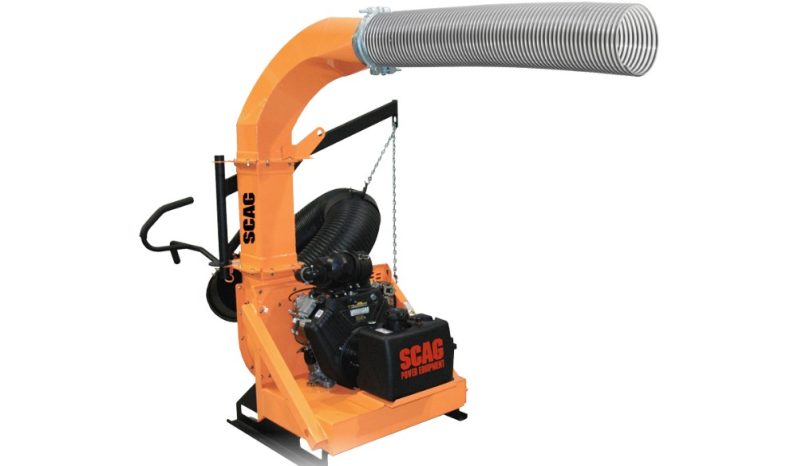

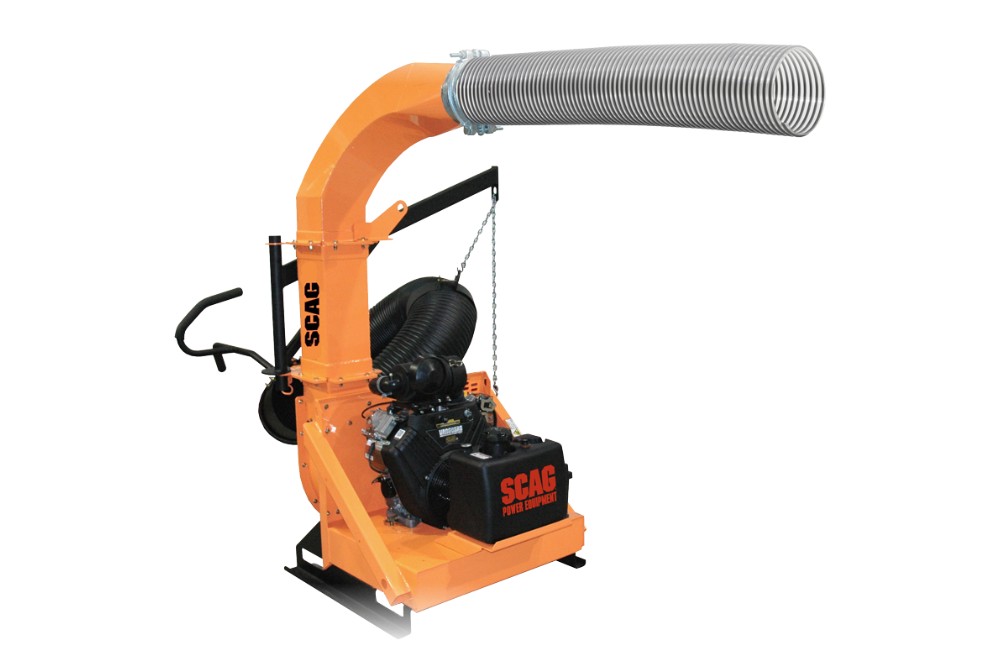

The Industrial Skid-Mount (model TLS20W-33BV) moves up to 4,680 CFM with a 33 HP Vanguard BIG BLOCK engine.
Specifications:
- Model: TLS20W-33BV
- Engine: Briggs & Stratton® Vanguard® BIG BLOCK™, V-twin, electric start
- Horsepower (as rated by the engine manufacturer): 33
- Fuel Capacity / Tank: 5.5 gallons, plastic tank with built-in fuel gauge
- CFM Output: 4,680
- Frame Construction: all-steel, welded
- Impeller Construction: 4-blade, 3/8″-thick blades, all-steel, welded
- Impeller Mounting: tapered locking hub
- Impeller Diameter / Width: 20″ / 6.5″
- Blower Housing Construction: removable back panel for easy impeller and wear plate access
- Blower Housing Width: 7.5″
- Blower Housing Wear Plates: standard 1/4″ steel, replaceable
- Hose: 120″ length, 12″ diameter, 0.045 black thermoplastic rubber, wire helix with wearstrip
- Unit Mounting: 4″ steel skid risers
- Discharge Tube: clear thermoplastic, 8″ diameter
- Throttle Control: commercial-grade, all-steel mechanicals, plastic debris cover
- Height: 75″ (without skid mount attached)
- Weight: 675 lbs
- Accessories: LED Light Kit
- Warranty: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
