When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. Whatever the job, from landscaping and municipal operations to golf courses, it has the commercial-grade size and performance to get it done. Leave the rest behind and work with the best.
Request a Quote
Using the form below
Scag Industrial Tow-Behind
| Make | Scag |
| Model | Industrial Tow-Behind |
| Machine Type | Truck Loader |
| Engine | Kohler, Kubota, Vanguard |
| Engine Fuel | Diesel, Gas |
| Horsepower | 35–49 HP |
| Operating Weight | 1,700–2,300 lbs |
| Width | 66.75″ |
| Airflow | 6,781–7,318 CFM |
Key Features:

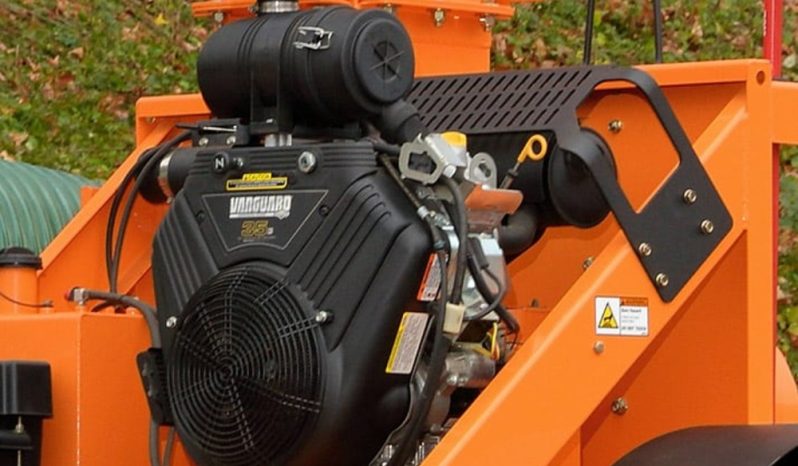

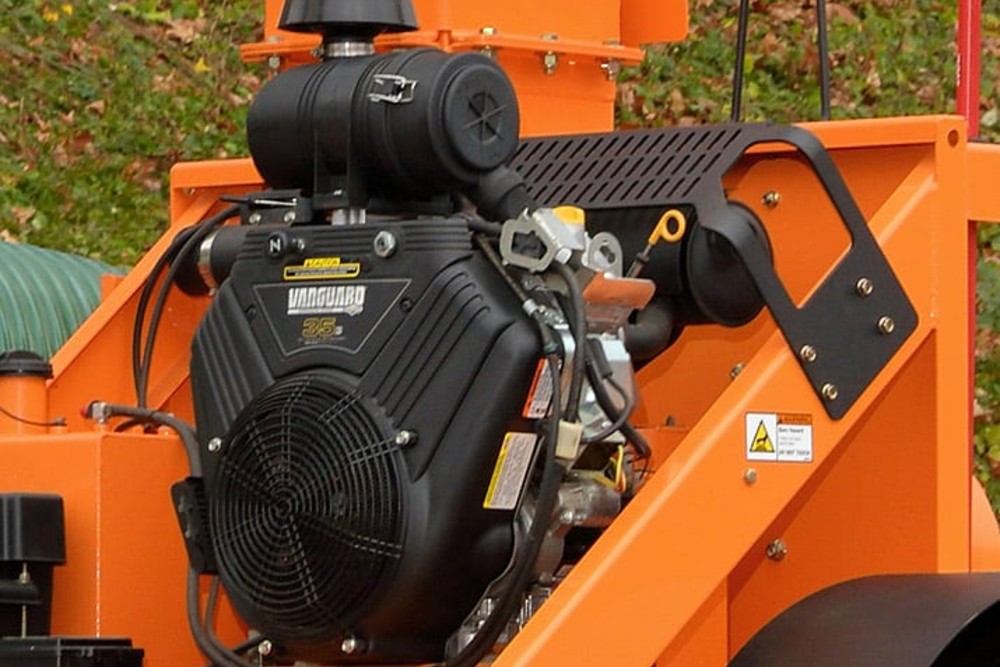

- Ultra-powerful engine options, up to 49 HP: choose a 35 hp Vanguard® BIG BLOCK™ or a 37 hp Kohler® Command PRO® gasoline engine, or a 49 hp Kubota® diesel engine.
- Fabricated and balanced 25″, 4-blade impeller: inside the 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. It is dynamically balanced for reduced vibration, longer life and less stress on the engine, with an effective, high-output, debris-reducing design (35BV up to 6,781 CFM; 37CH up to 6,909 CFM; 49KBD up to 7,318 CFM).

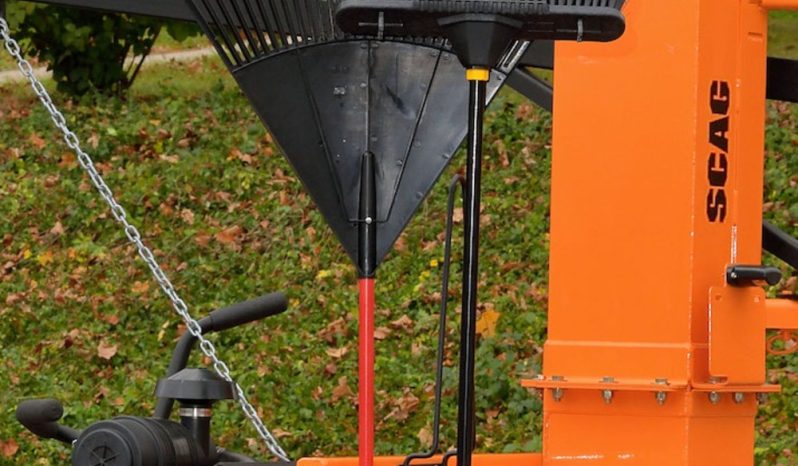

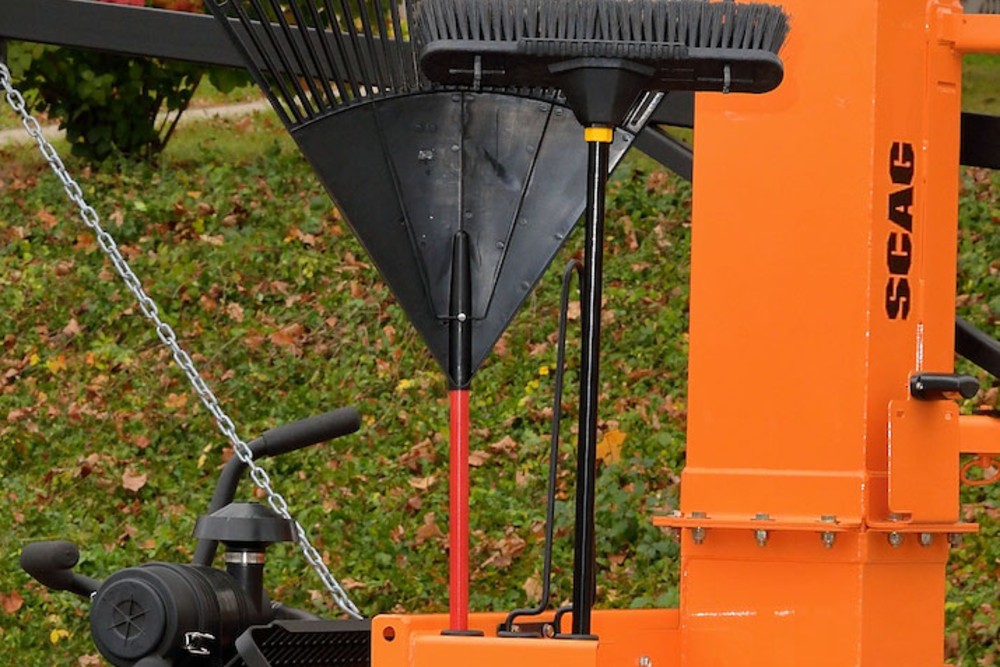

- Built-in tool holder: a 3-hole tool holder with rubber rings keeps rakes, brooms and shovels within easy reach and protects their handles from damage.

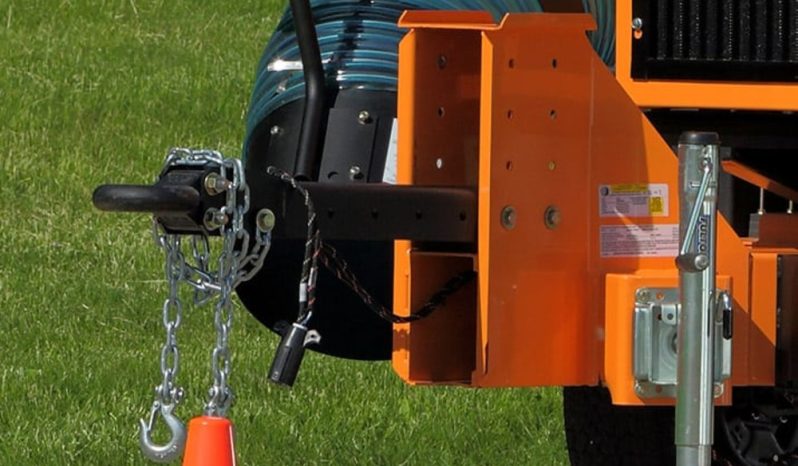

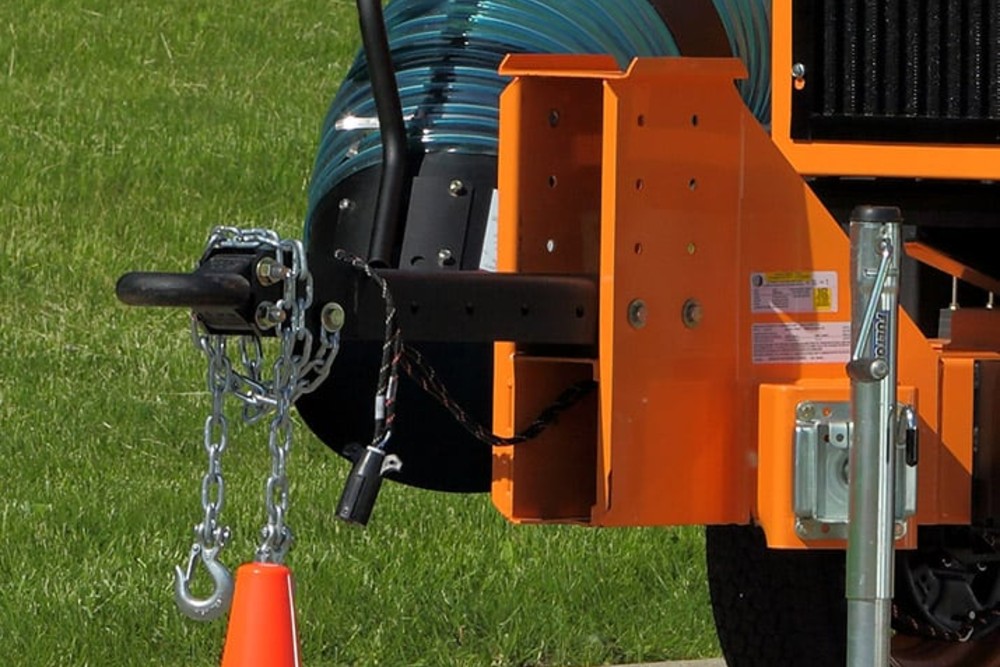

- Adjustable tongue and hitch: choose from three tongue lengths to fit your application, and the height-adjustable hitch gives the best fit to your truck. Gas-powered units come standard with a 2 5/16″ ball coupler and will accept a pintle hitch; the diesel unit comes standard with a pintle hitch and will accept a 2 5/16″ ball coupler.
- 16″ steel intake nozzle: a huge, replaceable intake nozzle makes debris pickup easy.
- Large-capacity fuel tank with built-in gauge: a high-capacity, 8.5-gallon fuel tank with a large filler neck for easy filling keeps you on the job, and the built-in fuel gauge takes out the guesswork.
- Ambidextrous nozzle handle: a padded, large-diameter handle gives more leverage and easy maneuvering from either side.
- Locking boom arm and intake nozzle: a transport lock safely secures the boom arm and hose when not in use, and a nylon bearing gives smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transport.
- Smart construction and easy service: a 1/4″-thick, bolt-in, replaceable wear liner extends service life, and a removable rear-housing cover gives easy access to the impeller and wear plates.
The Industrial Tow-Behind comes in three models: TLB25-35BV, TLB25-37CH and TLB25-49KBD, with up to 7,318 CFM.
Specifications:
- Models: TLB25-35BV, TLB25-37CH, TLB25-49KBD
- Engine: TLB25-35BV: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-twin, electric start. TLB25-37CH: Kohler® Command PRO®, V-twin, electric start. TLB25-49KBD: Tier 4 compliant Kubota®, 4-cylinder, liquid-cooled, electric start
- Horsepower (as rated by the engine manufacturer): 35 (35BV), 37 (37CH), 49 (49KBD)
- CFM Output: 6,781 (35BV), 6,909 (37CH), 7,318 (49KBD)
- Fuel Capacity / Tank: 8.5 gallons, plastic tank with built-in fuel gauge
- Frame Construction: all-steel, welded
- Impeller Construction: 4-blade, 1/2″-thick blades, all-steel, welded
- Impeller Mounting: straight bore
- Impeller Diameter / Width: 25″ / 9″
- Blower Housing Construction: removable back panel for easy impeller and wear plate access
- Blower Housing Width: 10.5″
- Blower Housing Wear Plates: standard 1/4″ steel, replaceable
- Intake Hose: 84″ length, 16″ diameter, 0.045 blue polyurethane rubber, wire helix with wearstrip
- Unit Mounting: hitch with at least a 10,000 lb rating
- Discharge Tube: clear thermoplastic, 12″ diameter, 84″ length
- Throttle Control: commercial-grade, all-steel mechanicals
- Highway Ready: yes, standard roadside package including wheel chocks and cones (check your local regulations)
- Axle: heavy-duty Dexter Torflex® axle (3,500 lb)
- Tires: 205/75 D15 highway tires with steel wheels
- Trailer Width: 66.75″
- Height: 121.25″
- Weight: 1,700 lbs (35BV, 37CH); 2,300 lbs (49KBD)
- Accessories: Light Kit, Brake Kit
- Warranty: 2-Year Commercial; 90-Day Rental
