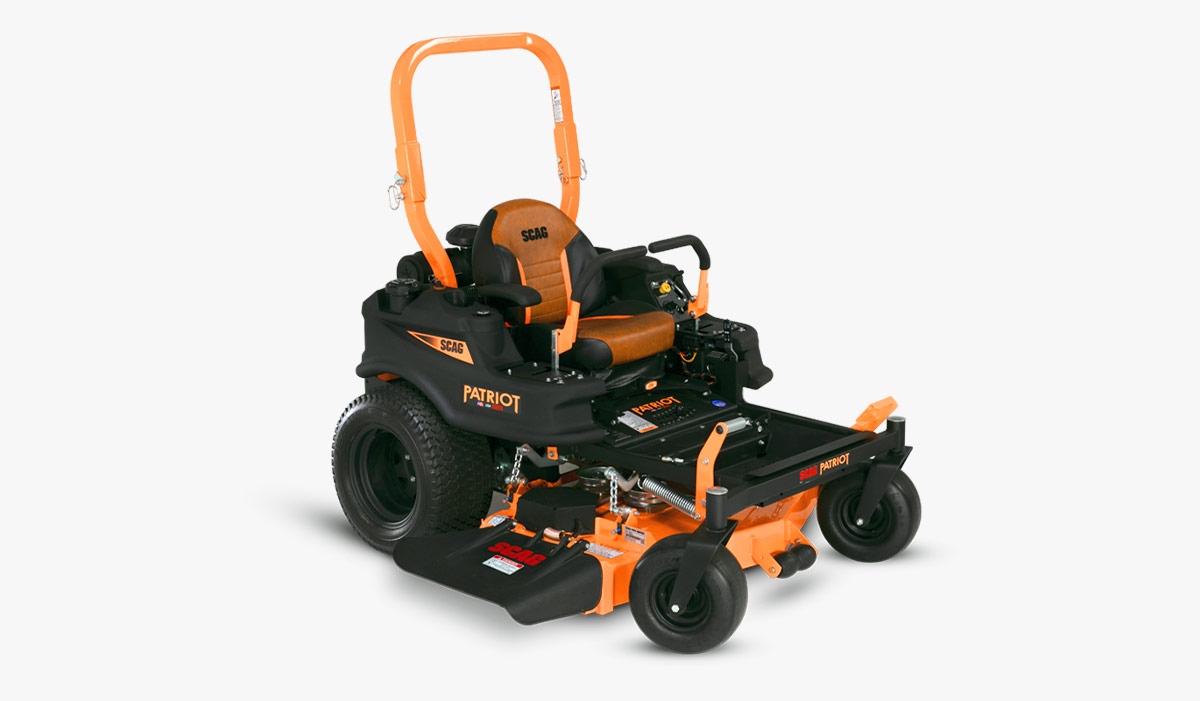

Scag Patriot

Condition	New
Make	Scag
Model	Patriot
Machine Type	Zero-Turn Riding Mowers
Engine	Kawasaki, Kohler, Kubota, Vanguard
Engine Fuel	Diesel, Gas
Horsepower	22 HP - 27 HP
Operating Weight	907 lbs - 956 lbs
Width	52″ to 61″

The Scag Patriot is designed to deliver commercial-grade performance at a value that’s perfect for both lawn care professionals and serious homeowners. It bridges the gap between residential and full commercial machines, offering exceptional cut quality, speed, and durability at a competitive price point.

Available with 52″ or 61″ Velocity Plus™ cutter decks, the Patriot is built on Scag’s double-tube steel frame and powered by reliable Kawasaki or Kohler engines, giving you the strength and precision you need to handle tough mowing jobs. Its ergonomic design and operator comfort features ensure you can mow longer without fatigue.

Key Features

Deck options: 52″ and 61″ Velocity Plus™ cutter decks for superior cut and discharge
Engine options: Kawasaki FX and Kohler Command Pro EFI, up to 27 HP
Cutting height: 1.5″ to 5.0″ in 0.25″ increments
Top ground speed: Up to 10 MPH forward
Fuel capacity: 6.5 gallons
Commercial-grade Hydro-Gear ZT-3400 transaxles for smooth, reliable drive
Heavy-duty, all-steel frame built for years of service
Adjustable suspension seat with armrests for operator comfort
Large rear drive tires for excellent traction and stability
Foot-operated deck lift for quick and easy height adjustments
Foldable ROPS bar for storage and trailer clearance

Specifications (Range Across Models)

Engine power: 23 HP to 27 HP
Deck sizes: 52″, 61″
Cutting height: 1.5″ to 5.0″
Fuel capacity: 6.5 gallons
Top speed: Up to 10 MPH
Machine weight: ~1,025 lb (52″) to ~1,075 lb (61″)
Length: Approx. 80″ to 82″
Transport width: ~53″ (52″ deck, chute up) to ~64″ (61″ deck, chute up)

Model	Deck Width	Engine	Horsepower	MSRP
SPZ-52H-22FX	52″	Kawasaki® FX Series	22	$9,529
SPZ-52H-23CV	52″	Kohler® Command PRO®	23	$9,199
SPZ-52H-24FT	52″	Kawasaki® FT Series	24	$9,429
SPZ-52H-25ZT	52″	Kohler® Confidant	25	$8,599
SPZ-52H-26BV	52″	Vanguard™ BIG BLOCK™	26	$9,539
SPZ-52H-27CX	52″	Briggs & Stratton® CXi Series™	27	$9,199
SPZ-61H-23FX	61″	Kawasaki® FX Series	23	$10,249
SPZ-61H-25ZT	61″	Kohler® Confidant	25	$8,999
SPZ-61H-25CV	61″	Kohler® Command PRO®	25	$9,749
SPZ-61H-26BV	61″	Vanguard™ BIG BLOCK™	26	$10,119
SPZ-61H-27CX	61″	Briggs & Stratton® CXi Series™	27	$9,749

Product Dimensions	52″ Patriot	61″ Patriot
Length	73″	79″
Width (chute down)	64.5″	73.5″
Width (chute in transport position)	53″	62″
Height (ROPS folded)	46.5″	47″
Height (ROPS up)	61″	61″
Weight	907-911 lb	952-956 lb

General
Total Fuel Capacity	6.5 gallons
Drive Tires	22″ x 10.5″-12″ (52″) 24″ x 12″-12″ (61″)
Caster Tires	13″ x 6.5″-6″
Seat	Torsion-spring suspension seat
Drive System
Drive System Type	Hydro-Gear ZT3100 Transaxle (52″) Hydro-Gear ZT3400 Transaxle (61″)
Pumps	ZT3100 Internal Pump: 10 cc (52″) ZT3400 Internal Pump: 12 cc (61″)
Motors	Internal Motor: 16 cc
Forward Ground Speed	8.5 mph (52″) 10 mph (61″)
Reverse Ground Speed	5 mph
Parking Brake	Foot-operated pedal
Cutting Widths	52″ and 61″
Cutting Height	1.5″ to 5″ in .25″ increments
Deck
Spindles	Aluminum housing with sealed ball bearings.
Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Deck Lift	Foot-operated pedal
Type	Hero Cutter Deck
Blade Engagement	Ogura GT2 (108 ft lb) Adjustable air-gap for extended life.
