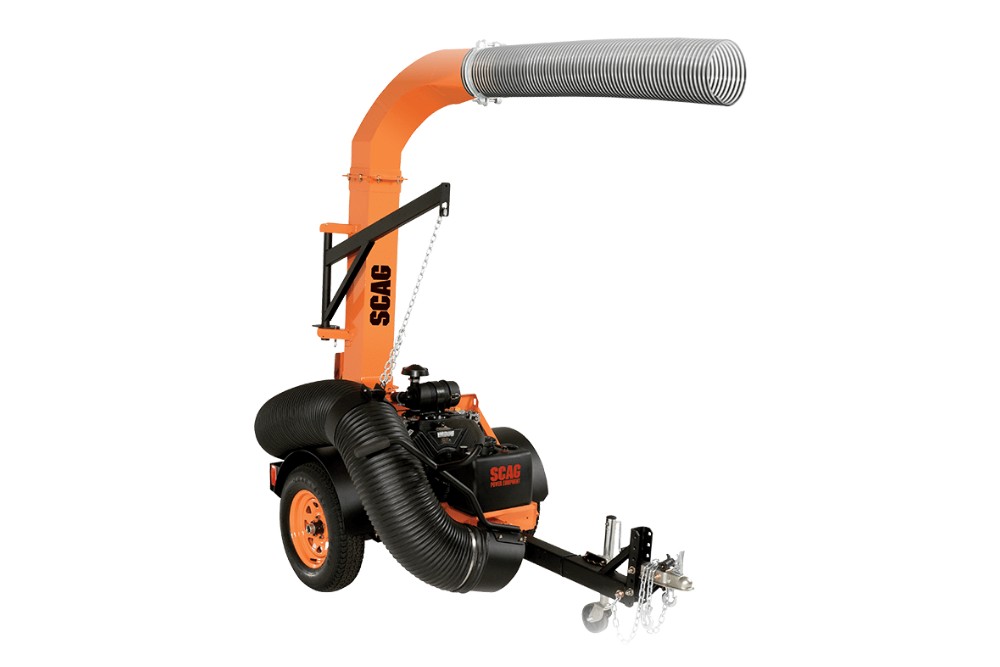

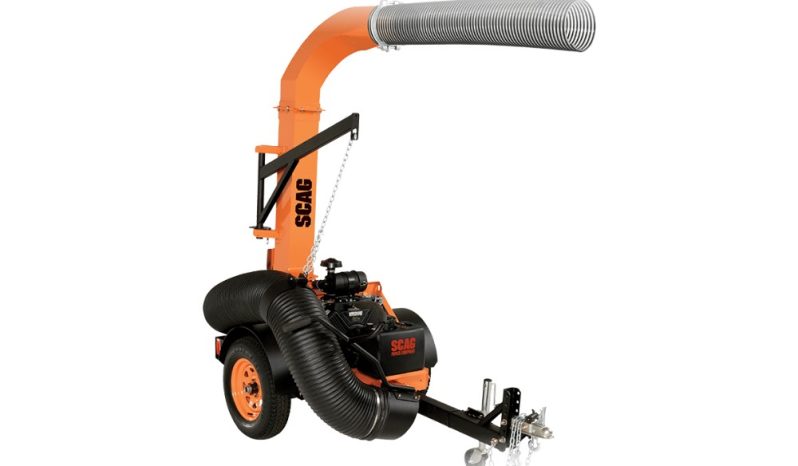

Never back down. With two engine options and a two-year warranty, the Scag® Tow-Behind Truck Loader gives peace of mind to operators who need a machine that can keep up with them. Designed first and foremost for durability, it handles whatever a job throws at it. Simply put, it is built to keep going and going.
Request a Quote
Using the form below
Scag Tow-Behind
| Make | Scag |
| Model | Tow-Behind |
| Machine Type | Truck Loader |
| Engine | Kohler, Vanguard |
| Engine Fuel | Gas |
| Horsepower | 26.5–33 HP |
| Operating Weight | 990–1,060 lbs |
| Width | 53.5″ |
| Airflow | 4,680 CFM |
Key Features:
- Fabricated and balanced 20″, 4-blade impeller: inside the 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. It is dynamically balanced for reduced vibration, longer life and less stress on the engine, with an effective, high-output, debris-reducing design (up to 4,680 CFM).

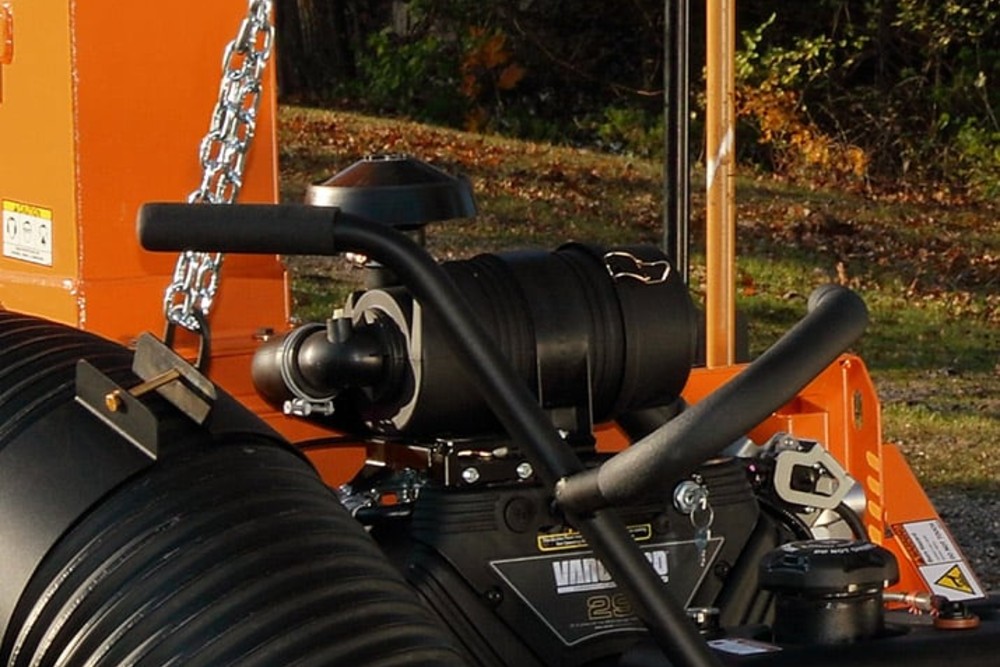

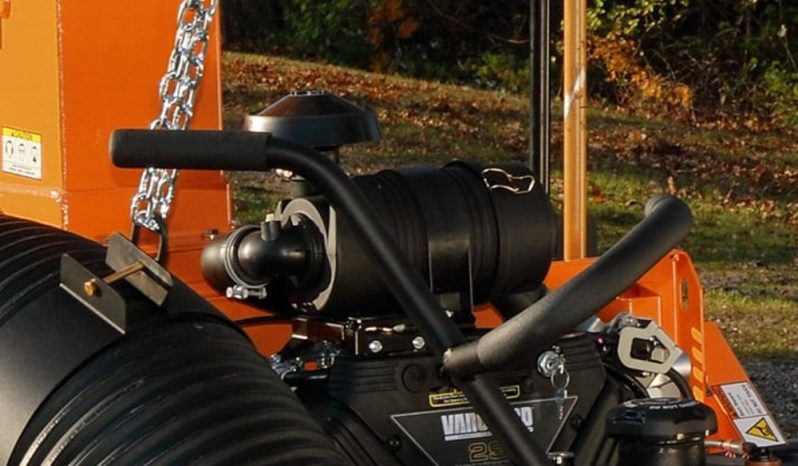

- Powerful engine options: choose a 26.5 hp Kohler® Command PRO® EFI or a 33 hp Vanguard® BIG BLOCK™ gasoline engine.

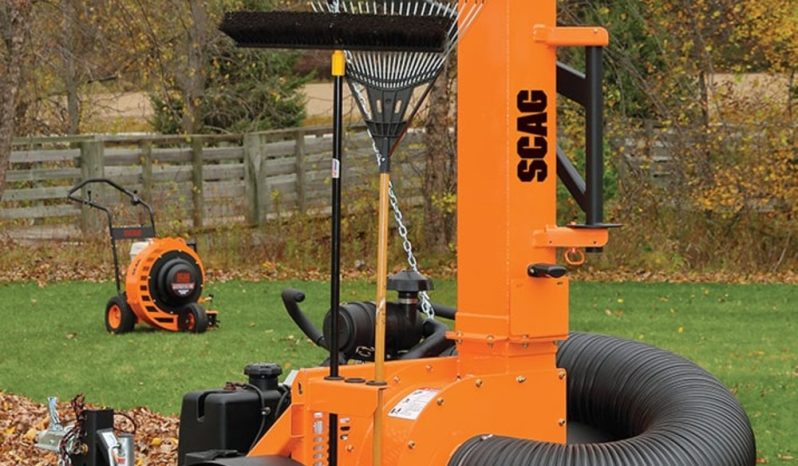

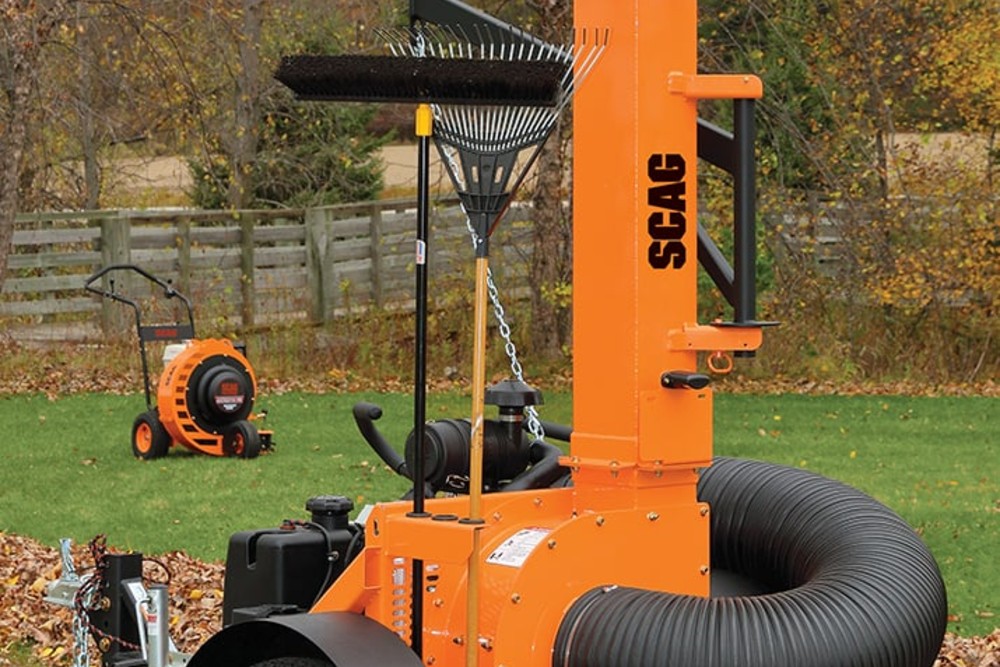

- Built-in tool holder: a 3-hole tool holder with rubber rings keeps rakes, brooms and shovels within easy reach and protects their handles from damage.
- Adjustable tongue and hitch: choose from three tongue lengths to fit your application, and the height-adjustable hitch gives the best fit to your truck. The standard 2″ ball coupler will also accept a 2 5/16″ ball or a pintle hitch.
- Large-capacity fuel tank with built-in gauge: a high-capacity, 5.5-gallon, plastic fuel tank with a large filler neck for easy filling keeps you on the job, and the built-in fuel gauge takes out the guesswork.
- 12″ steel intake nozzle: a large, replaceable intake nozzle is beveled to make debris pickup easy.
- Ambidextrous nozzle handle: a padded, large-diameter handle gives more leverage and easy maneuvering from either side.
- Locking boom arm and intake nozzle: a transport lock safely secures the boom arm and hose when not in use, and a nylon bearing gives smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transport.
- Smart construction and easy service: a 1/4″-thick, bolt-in, replaceable wear liner extends service life, and a removable rear-housing cover gives easy access to the impeller and wear plates.
The Tow-Behind comes in two models: TL20W-26CH-EFI and TL20W-33BV, both with up to 4,680 CFM.
Specifications:
- Models: TL20W-26CH-EFI, TL20W-33BV
- Engine: TL20W-26CH-EFI: Kohler® Command PRO® EFI, V-twin, electric start. TL20W-33BV: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-twin
- Horsepower (as rated by the engine manufacturer): 26.5 (26CH-EFI), 33 (33BV)
- CFM Output: 4,680
- Fuel Capacity / Tank: 5.5 gallons, plastic tank with built-in fuel gauge
- Frame Construction: all-steel, welded
- Impeller Construction: 4-blade, 3/8″-thick blades, all-steel, welded
- Impeller Mounting: tapered locking hub
- Impeller Diameter / Width: 20″ / 6.5″
- Blower Housing Construction: removable back panel for easy impeller and wear plate access
- Blower Housing Width: 7.5″
- Blower Housing Wear Plates: standard 1/4″ steel, replaceable

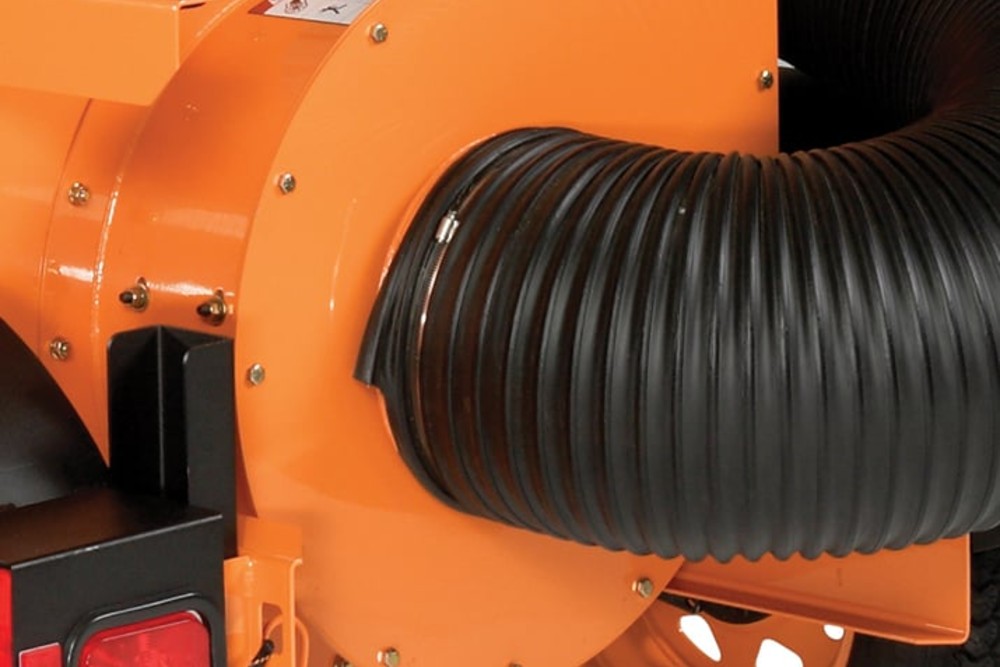

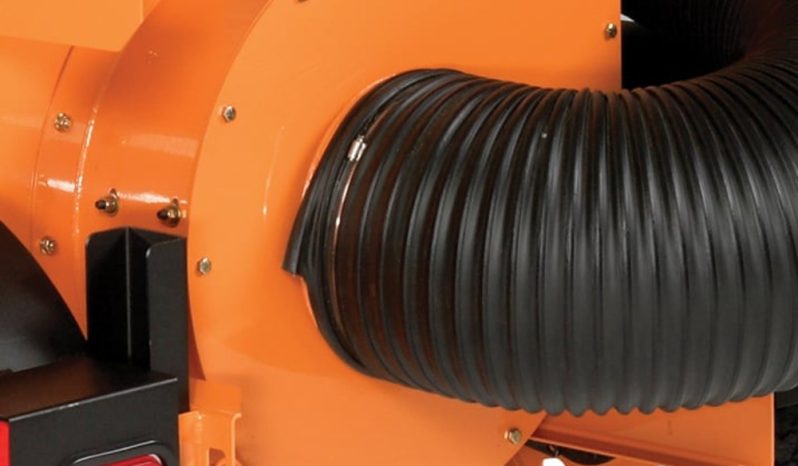

- Intake Hose: 120″ length, 12″ diameter, 0.045 blue thermoplastic rubber, wire helix with wearstrip
- Unit Mounting: Class III hitch minimum
- Discharge Tube: clear thermoplastic, 8″ diameter, 60″ length
- Throttle Control: commercial-grade, all-steel mechanicals, plastic debris cover
- Highway Ready: yes, optional roadside package (check your local regulations)
- Axle: heavy-duty Dexter Torflex® axle (2,000 lb)
- Tires: 205/75 R15 highway tires with steel wheels
- Trailer Width: 53.5″
- Height: 110″
- Weight: 990 lbs (26CH-EFI); 1,060 lbs (33BV)
- Accessories: Light Kit, Roadside Kit
- Warranty: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
