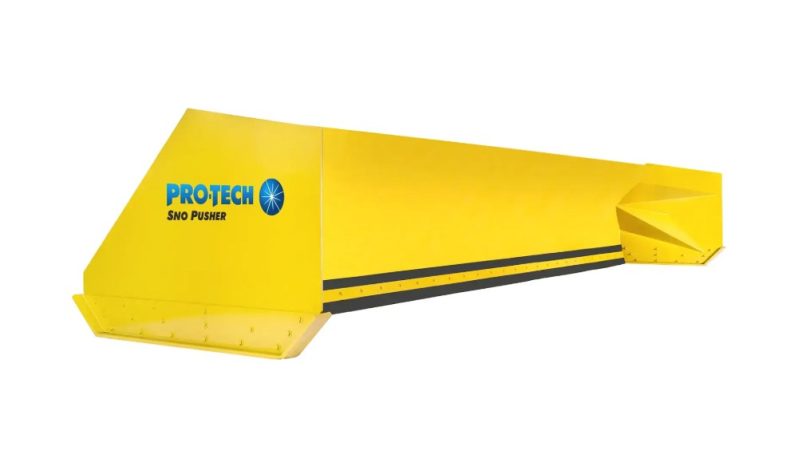

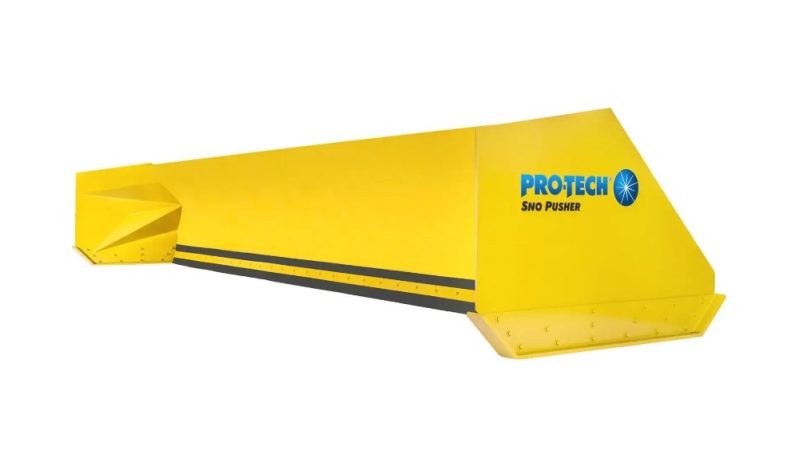

Super Duty Sno Pusher

Make	Pro-Tech
Model	Super Duty
Machine Type	Sno Pusher
Operating Weight	2,800 lbs - 8,400 lbs
Width	10′ to 30′

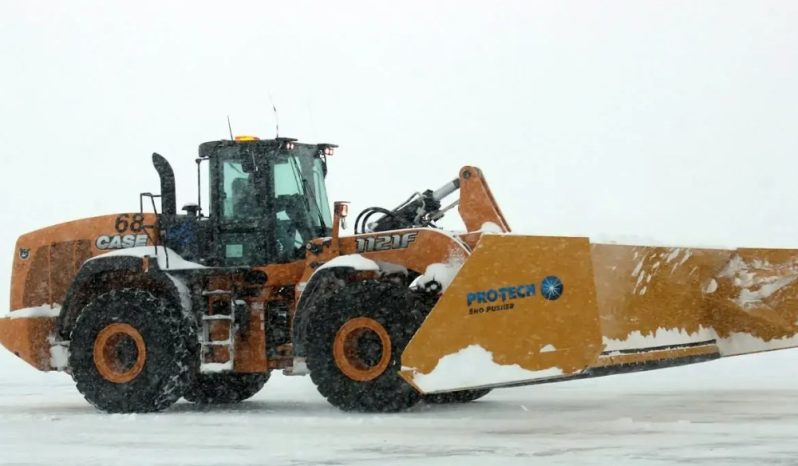

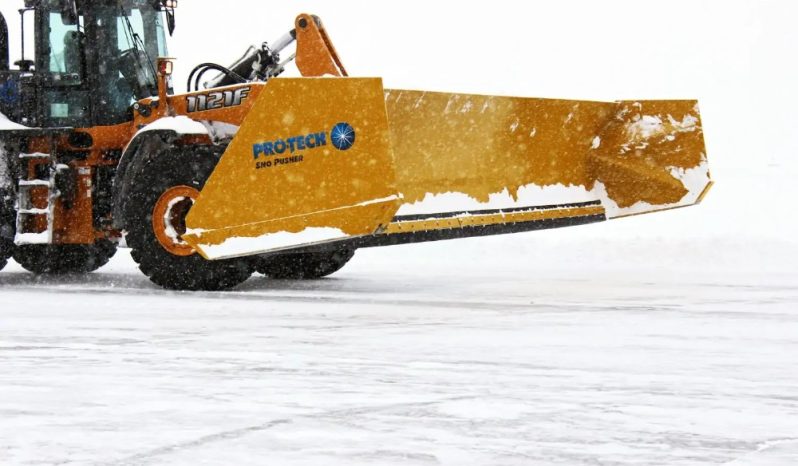

How big can an airport snow plow get? The Super Duty Sno Pusher is the answer. Built for airports, distribution centers and other large properties, it clears up to 57 yards of snow in one pass. Everything on it is bigger: the height, the width, the containment, the rubber plowing edge and the extra bracing. It is in use at some very well-known locations across North America, keeping flights and deliveries on time, and it also handles non-snow work such as moving grain, wastewater and aggregate. Sizes range from 10′ to 30′ for loaders.

Key Features:

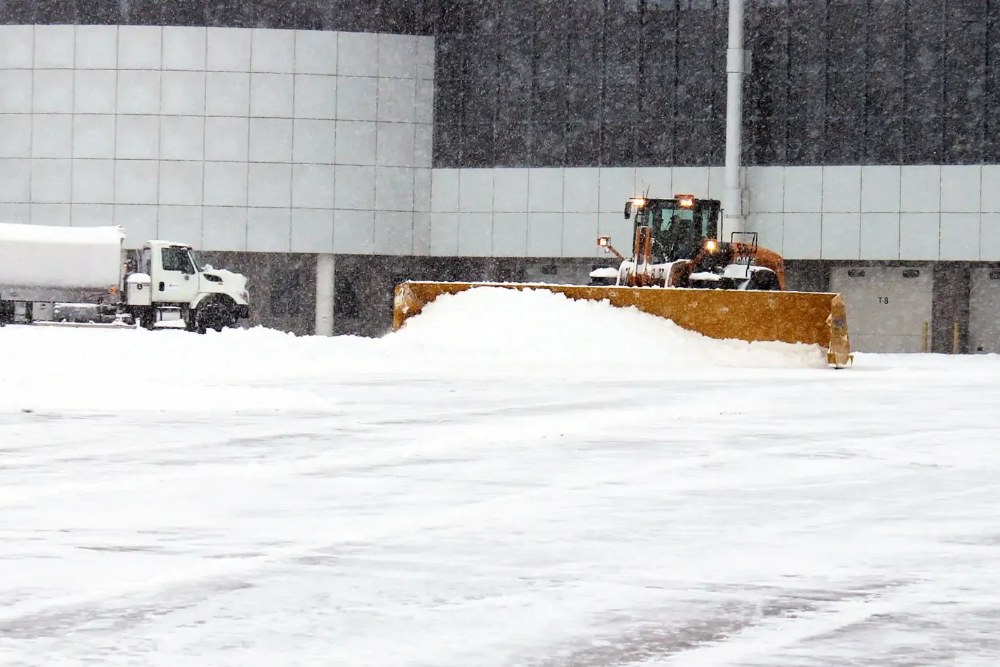

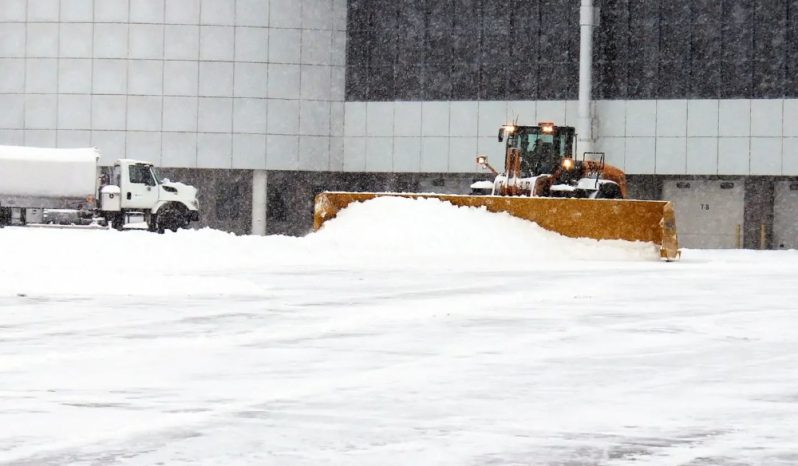

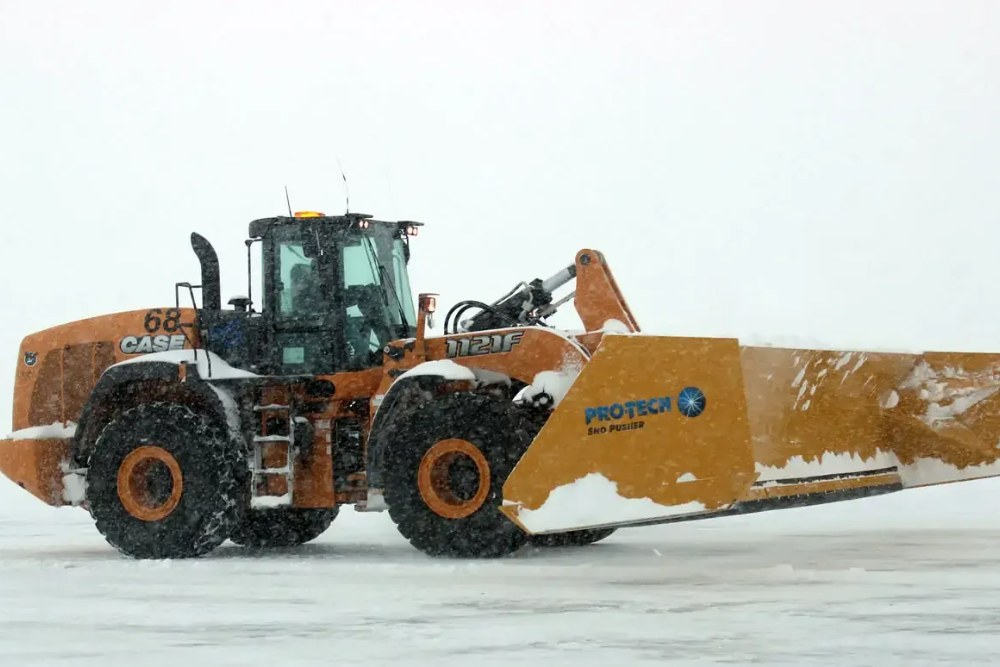

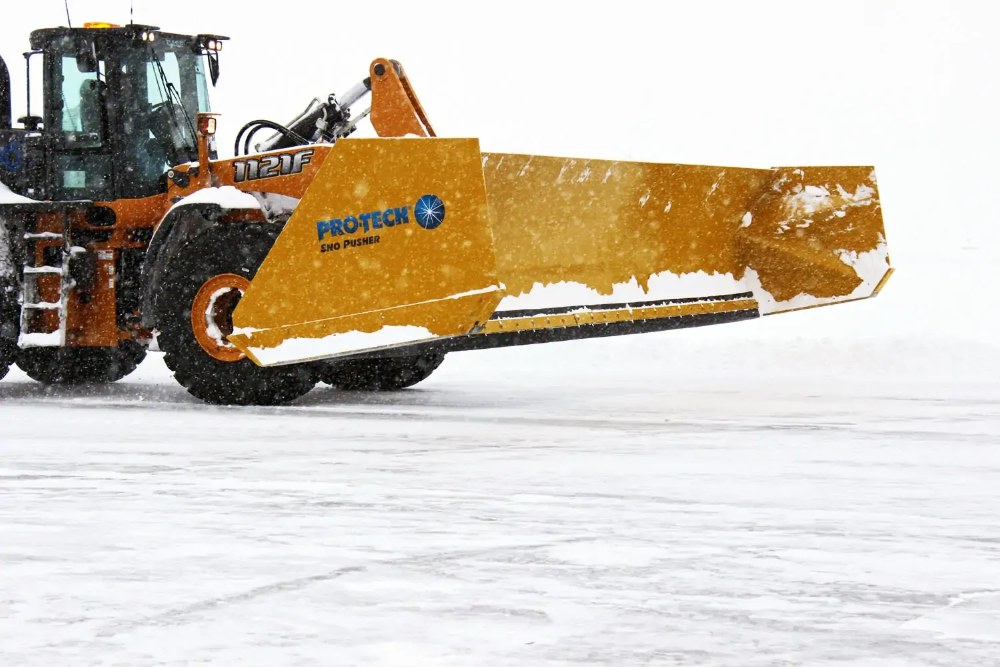

Large Property Hero: When a winter storm hits, planes still need to fly and delivery trucks still need to deliver. Paired with a heavy-duty loader, the Super Duty clears massive properties, and its size plus Pro-Tech’s reputation for durability holds up to winter’s worst.

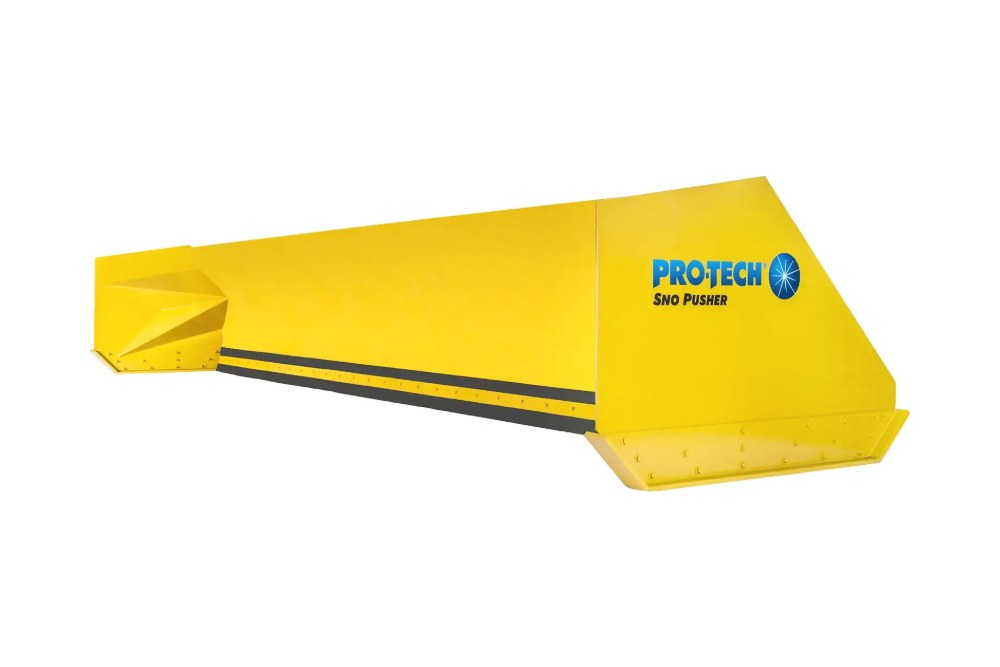

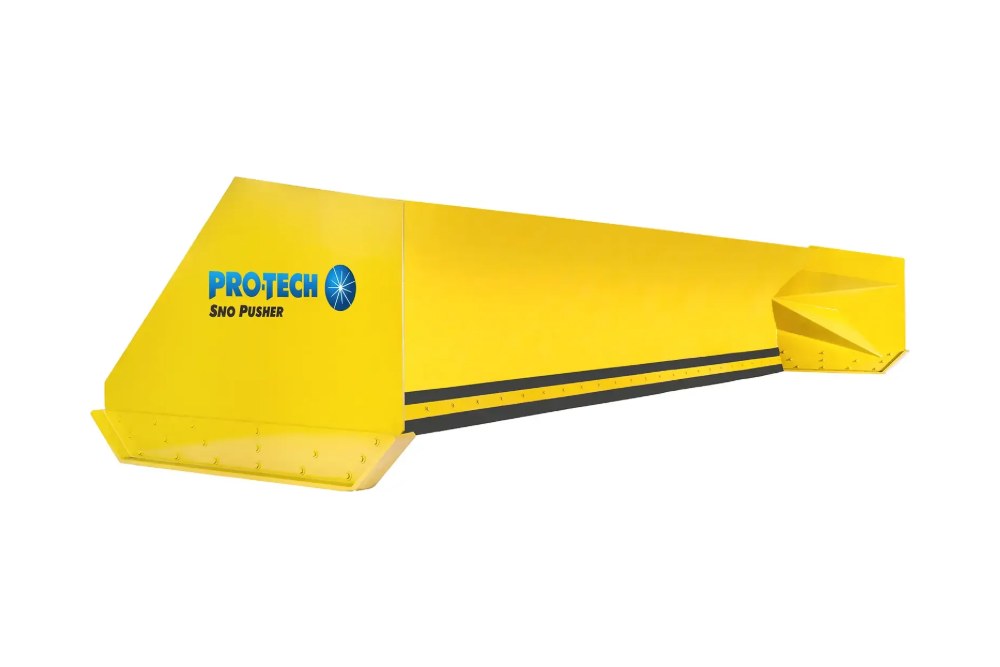

The Goliath of Containment Plows: It stands 5 feet tall, weighs up to 4 tons and holds up to 57 yards of snow. The extruded rubber cutting edge is bigger than a standard loader pusher’s (2″ x 12″ versus 1.5″ x 10″), the chassis has extra bracing to handle the forces of a large machine, and the wear shoes use the same bullet-proof material found in armored vehicles.
Not Just for Snow: Repurpose large construction or mining wheel loaders with the Super Duty for wastewater, silage and aggregate management.

Product Features:

Industry’s biggest containment plow

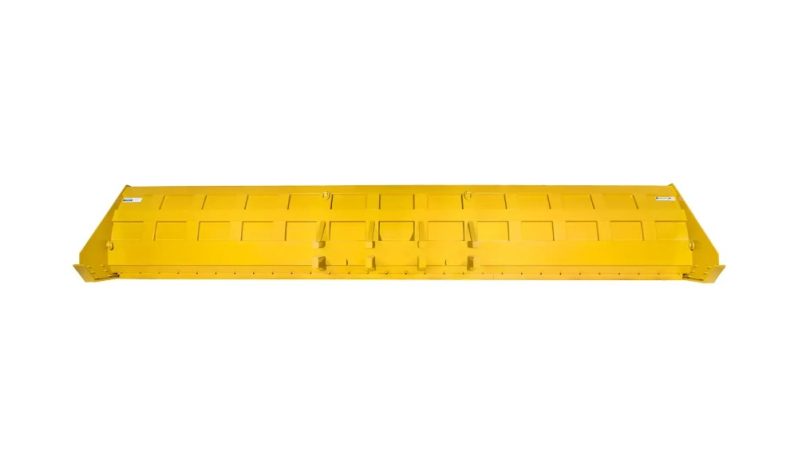

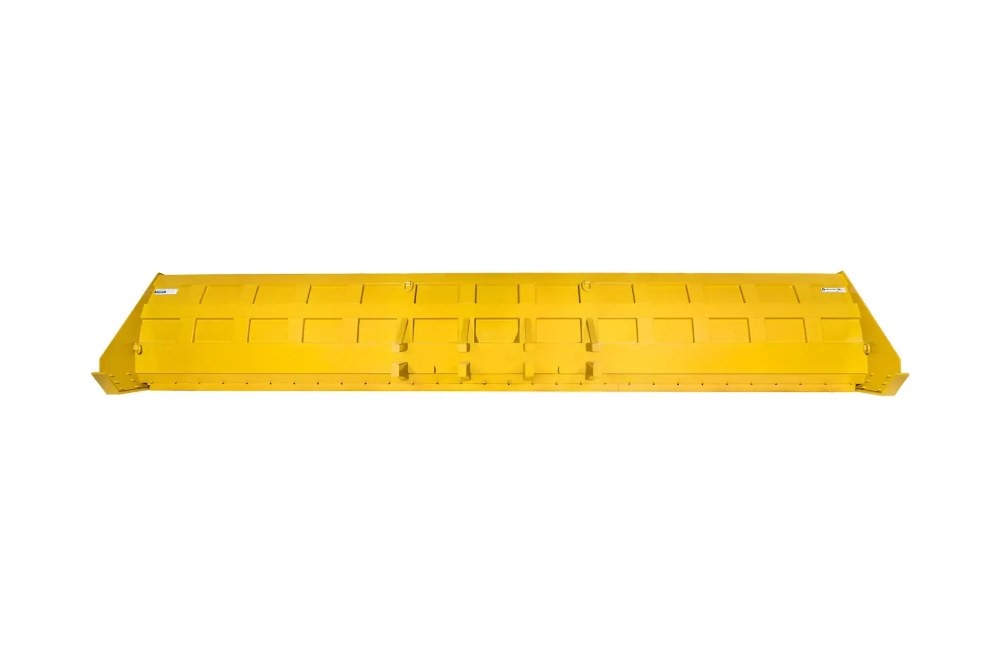

Extra bracing and supports for big loaders
For large prime movers
For airports, distribution centers and other large properties
Construction or agricultural use

Easy to operate and maintain
Fully welded construction
High-quality primer and paint
10-year warranty

For loaders, the Super Duty Sno Pusher comes in widths from 10′ to 30′, all with a 60″ moldboard and 62″ x 88″ sideplates.

Specifications:

Model	Width	Approx. Weight	Machine Minimum	Moldboard	Sideplate	Snow Capacity
SD10L	10′	2,800 lbs	100 hp	60″	62″ x 88″	19 yd
SD12L	12′	3,300 lbs	120 hp	60″	62″ x 88″	23 yd
SD14L	14′	3,800 lbs	140 hp	60″	62″ x 88″	27 yd
SD16L	16′	4,300 lbs	140 hp	60″	62″ x 88″	31 yd
SD18L	18′	4,800 lbs	170 hp	60″	62″ x 88″	35 yd
SD20L	20′	5,400 lbs	170 hp	60″	62″ x 88″	39 yd
SD24L	24′	6,400 lbs	180 hp	60″	62″ x 88″	47 yd
SD30L	30′	8,400 lbs	190 hp	60″	62″ x 88″	57 yd
